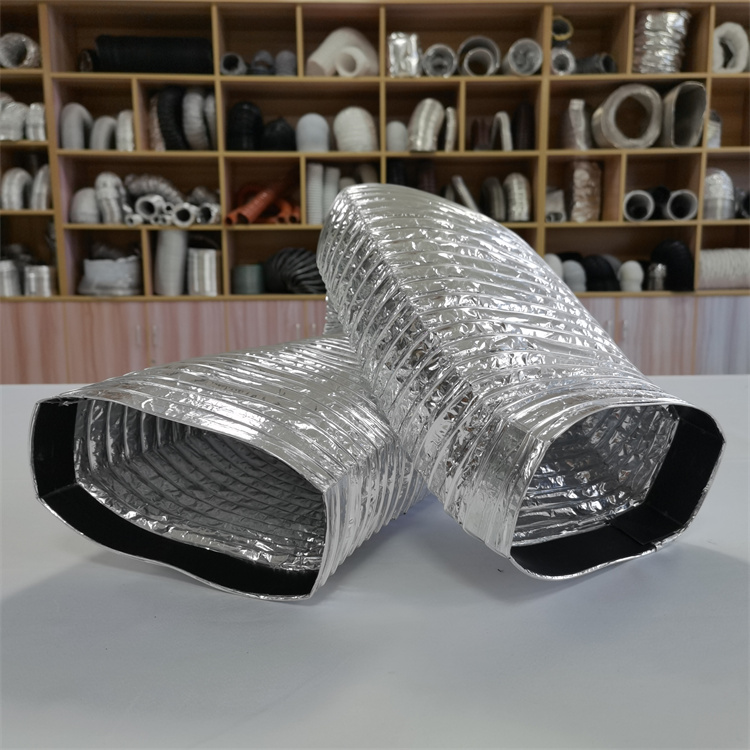

Rectangle Aluminum Flexible Duct
方形铝箔软管
|
Product Code |
XY-111 |
产品编码 |
XY-111 |
|
Construction |
2 Aluminum Foil + 1 PET |
材料 |
2层铝箔+1层PET |
|
Color |
Silver |
颜色 |
银色 |
|
AvailableDiameter |
customized |
直径范围 |
按要求定制 |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
钢丝直径 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
标准长度 |
10m(Max) |
|
Thickness |
0.032mm-0.035mm |
厚度 |
0.032mm-0.035mm |
|
Fire Resistance |
Class A2(Max) |
防火等级 |
A2级，难燃 |
|
CompressRatio |
1：25 |
压缩比 |
1：25 |
|
Temperature Range |
-30℃/+150℃ |
温度范围 |
-30℃/+150℃ |
|
Operating Pressure |
3000Pa |
最大压力 |
3000Pa |
|
Maximum Air Velocity |
最大风速 |
30m/s |
方形铝箔伸缩软管采用积层铝箔复合膜绕帖高弹性螺旋形强韧钢丝制作而成。
拉直后自持性好、风阻小、清洁卫生，遇到高温或火警时，不产生有毒气体，适用于高、中、低压的空调及通风系统，安装便捷。
Made of spiral steel wire laminated with aluminum/polyester foil.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
