PET Flexible Duct
PET软管
|
Product Code |
XY-105 |
产品编码 |
XY-105 |
|
Construction |
1 PET film |
材料 |
1层PET |
|
Color |
Transparent/Black |
颜色 |
透明/黑色 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直径范围 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
钢丝直径 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
标准长度 |
10m(Max) |
|
Thickness |
0.025mm-0.027mm |
厚度 |
0.025mm-0.027mm |
|
Fire Resistance |
Class B1 |
防火等级 |
B1级，阻燃 |
|
CompressRatio |
1: 25 |
压缩比 |
1：25 |
|
Temperature Range |
-20℃/+80℃ |
温度范围 |
-20℃/+80℃ |
|
Operating Pressure |
3000Pa |
最大压力 |
3000Pa |
|
Maximum Air Velocity |
最大风速 |
30m/s |
PET伸缩软管采用PET膜复合膜绕帖高弹性螺旋形强韧钢丝制作而成。
拉直后自持性好、风阻小、清洁卫生，遇到高温或火警时，不产生有毒气体，适用于高、中、低压的空调及通风系统，安装便捷。

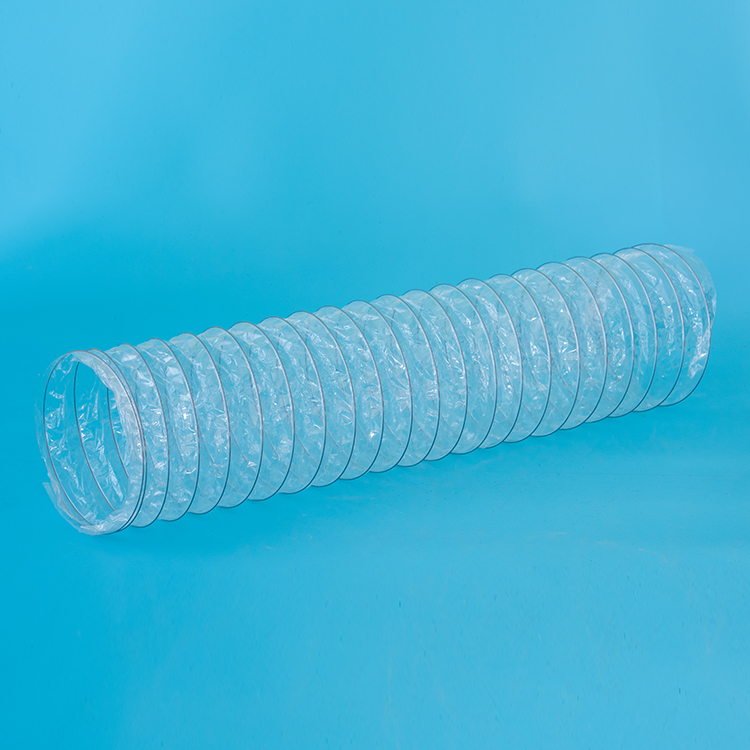

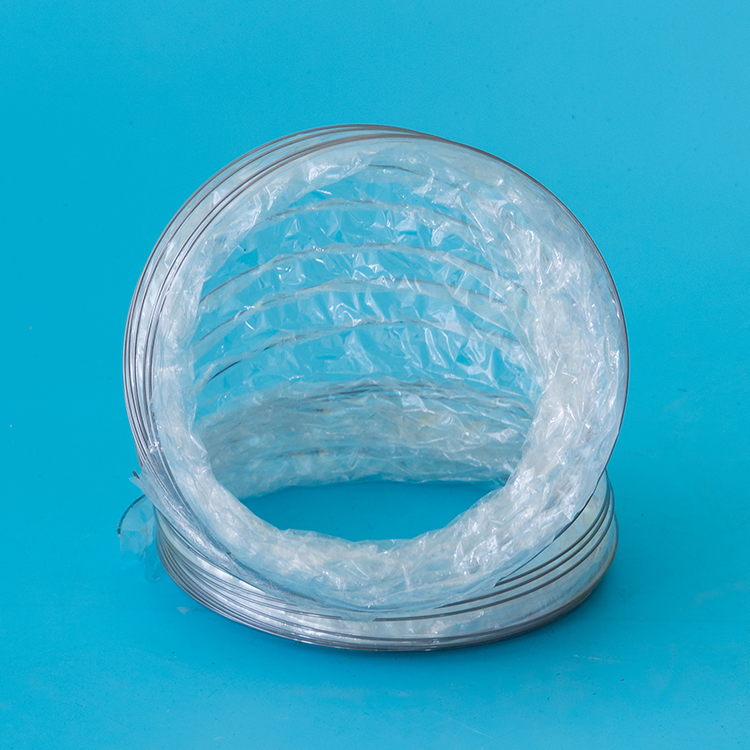

Made of spiral steel wire laminated with PET film.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
