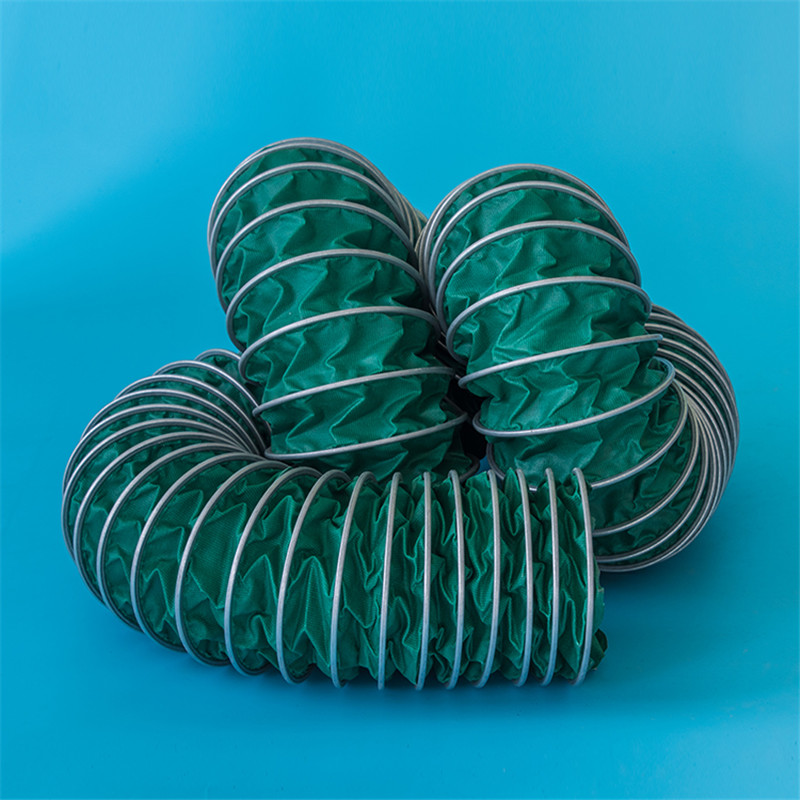

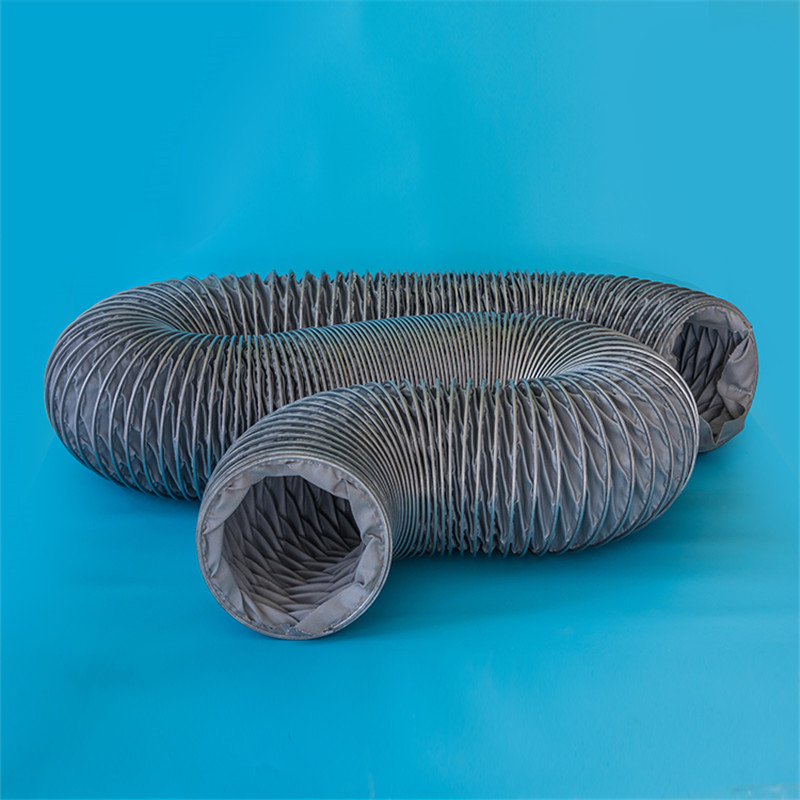

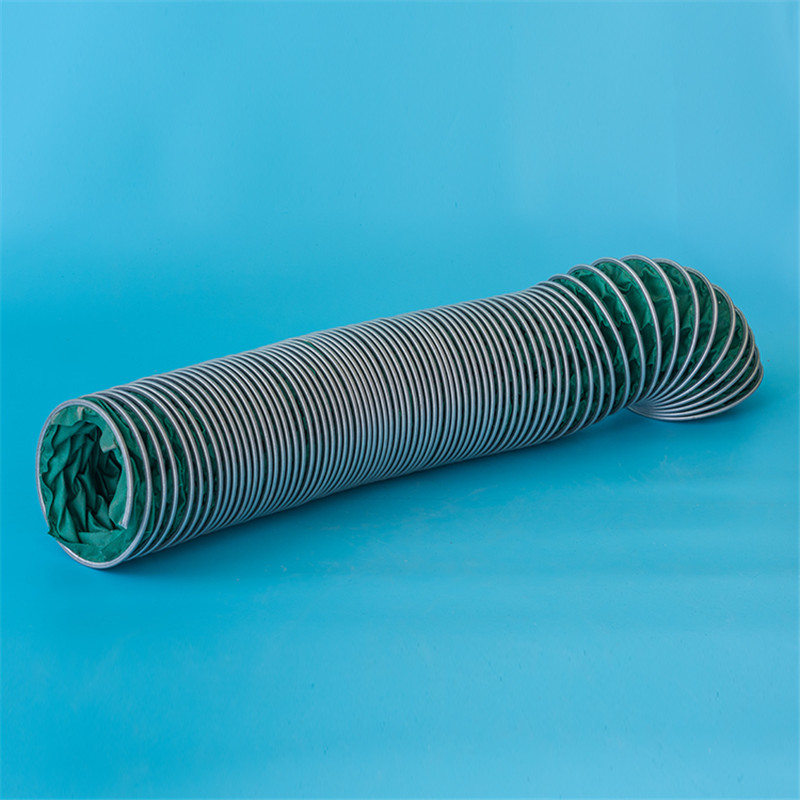

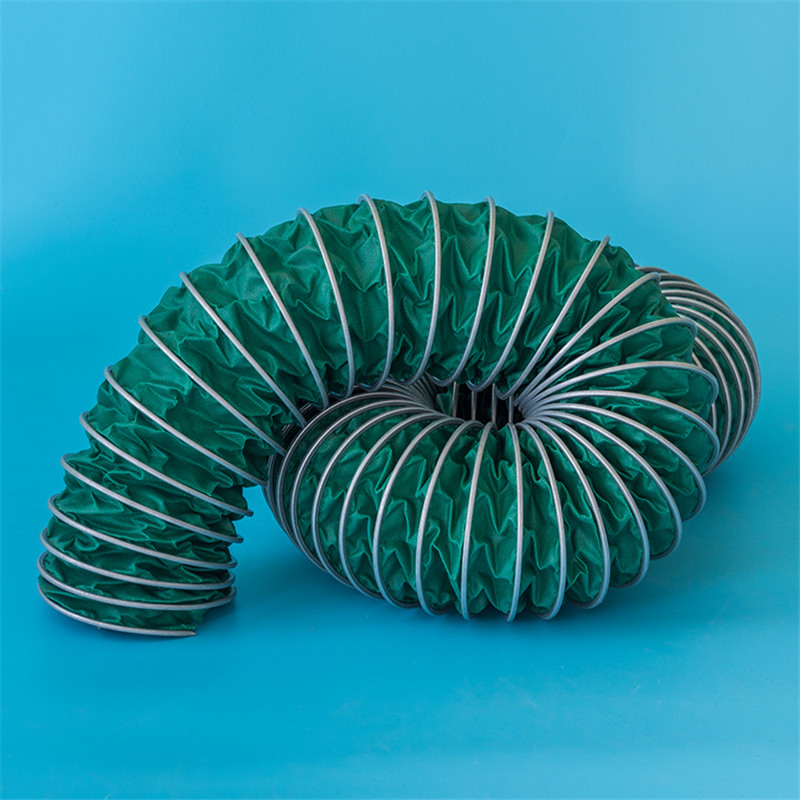

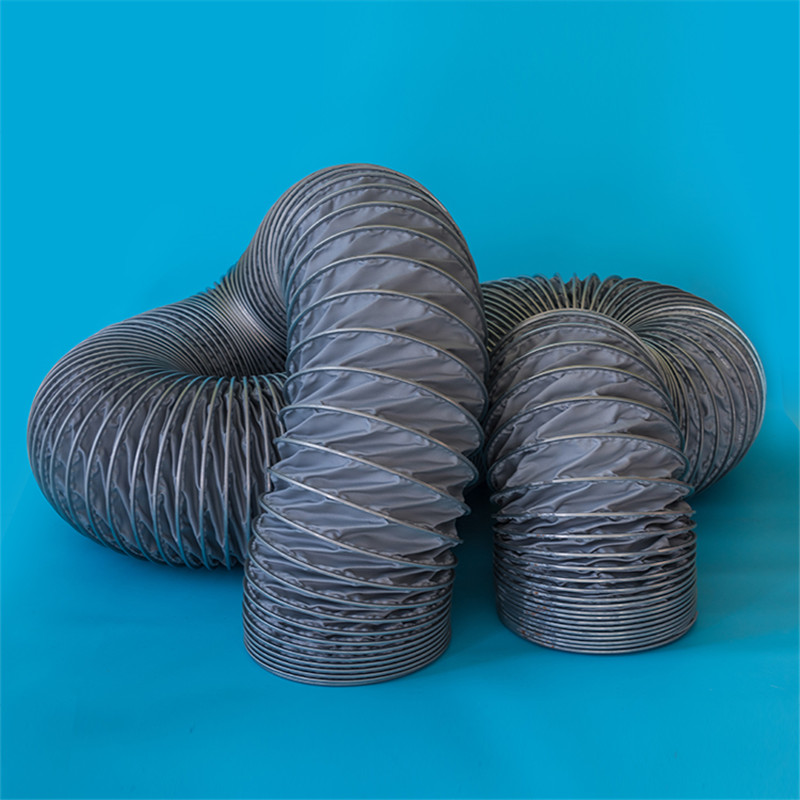

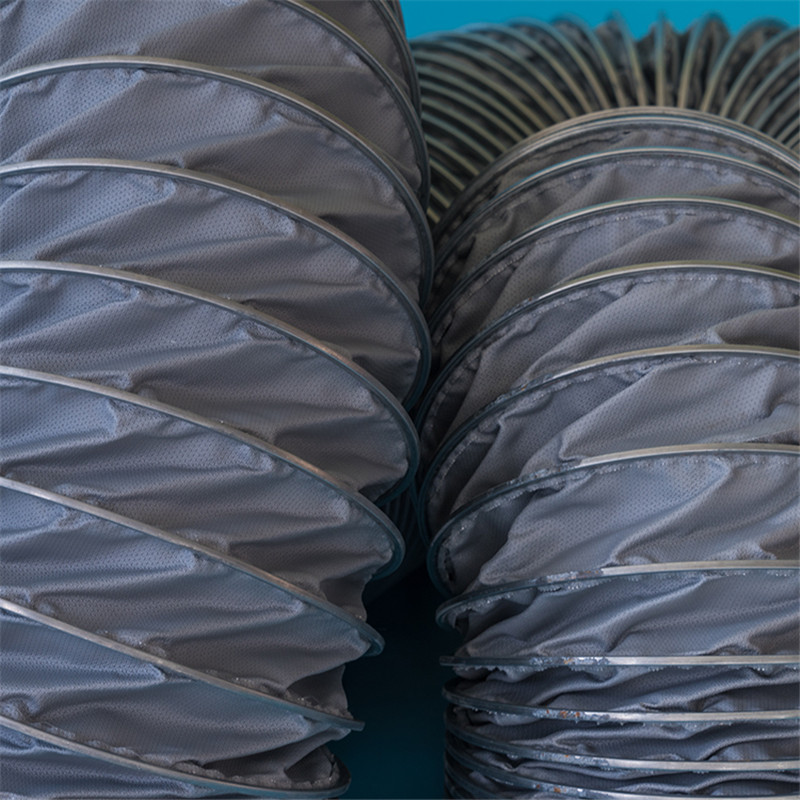

High-Temperature Ventilation Duct
高温管
|
Product Code |
XY-803 |
|
Construction (From outside to inside) |
Reinforced Glass Fabric (+ Aluminum Foil) |
|
Color |
Metallic Grey/Green |
|
InnerDiameter |
50mm-500mm (2"-20") |
|
Thickness |
0.35mm |
|
Length |
10m(Max) |
|
Fire Resistance |
Non-Flammable |
|
Compression Ratio |
1 : 10 |
|
Temperature Range |
-70℃/+250℃/+400℃/+800℃/+1000℃ |
|
Operating Pressure |
3000Pa |
|
Maximum Air Velocity |
30m/s |
|
|
|
|
产品编码 |
XY-803 |
|
材质 |
加强型玻纤布 |
|
颜色 |
灰色 |
|
内径范围 |
50mm-500mm (2"-20") |
|
管壁厚度 |
0.35mm |
|
标准长度 |
10m(Max) |
|
阻燃性能 |
不可燃 |
|
压缩比例 |
1 : 10 |
|
温度范围 |
-70℃/+250℃/+400℃/+800℃/+1000℃ |
|
最大压力 |
3000Pa |
|
最大风速 |
30m/s |
