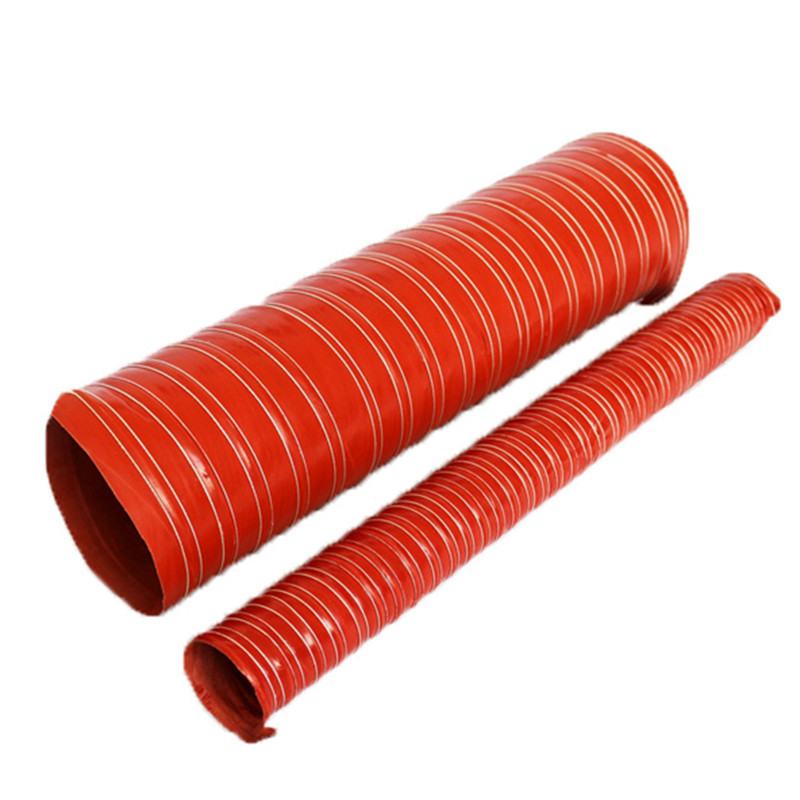

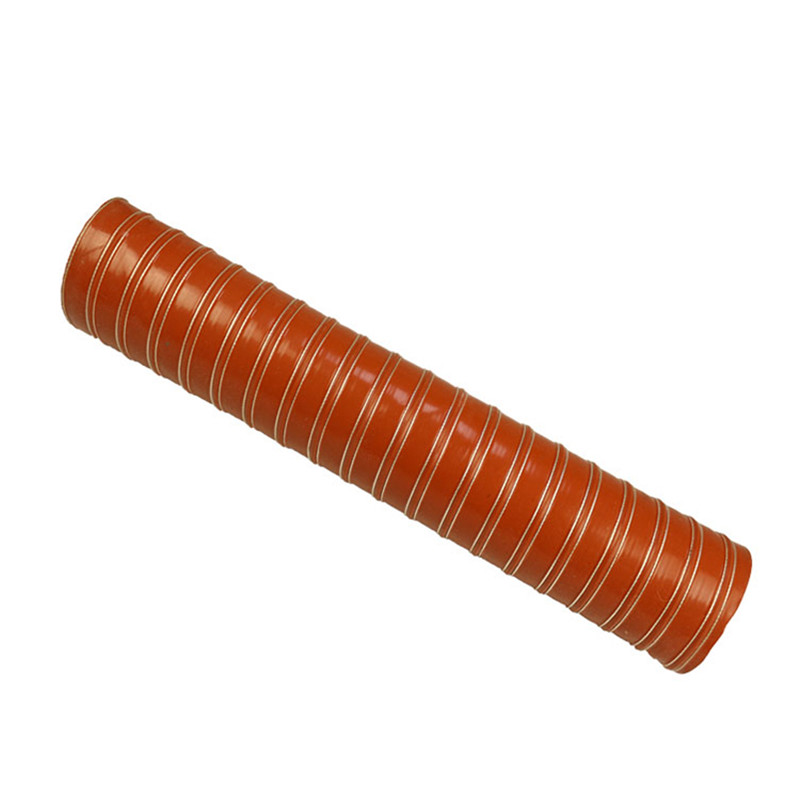

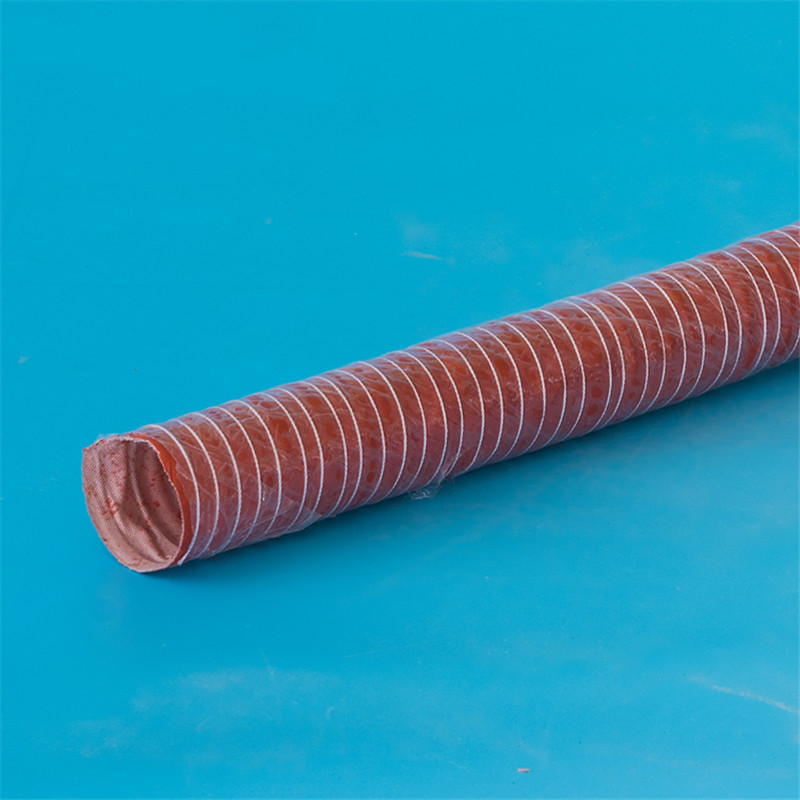

红色矽胶管

Product Code

XY-802

Construction

(From outside to inside)

Glass Fiber Cord +Silicon Coated+ Glass Fabric+ Steel Wire+ Glass Fabric

Color

Red/black

InnerDiameter

40mm-300mm

(1.5"-12")

Thickness

0.6mm

Length

4m(Max)

Helix Spacing

15mm,16mm,18mm,19mm(customized)

Bending Property

Good

Helix Wire Diameter

1.2mm,1.5mm

Fiber Braiding Wire Thickness

1mm

Fire Resistance

Non-Flammable

Compression Ratio

Cannot Been Compressed

Temperature Range

-70℃/+280℃(short time to +310℃)

Operating Pressure

3000Pa

Maximum Air Velocity

30m/s

产品编码

XY-802

材质

玻璃纤维绳+硅胶涂层玻纤布+ 钢丝

颜色

红色

内径范围

40mm-300mm

(1.5"-12")

管壁厚度

0.6mm

标准长度

4m(Max)

钢丝间距

15mm,16mm,18mm,19mm(按要求定制)

弯曲性能

Good

钢丝直径

1.2mm,1.5mm

玻璃纤维绳直径

1mm

阻燃性能

不可燃

压缩比例

不可压缩

温度范围

-70℃/+280℃(短期可达 +310℃)

最大压力

3000Pa

最大风速

30m/s
