油烟管

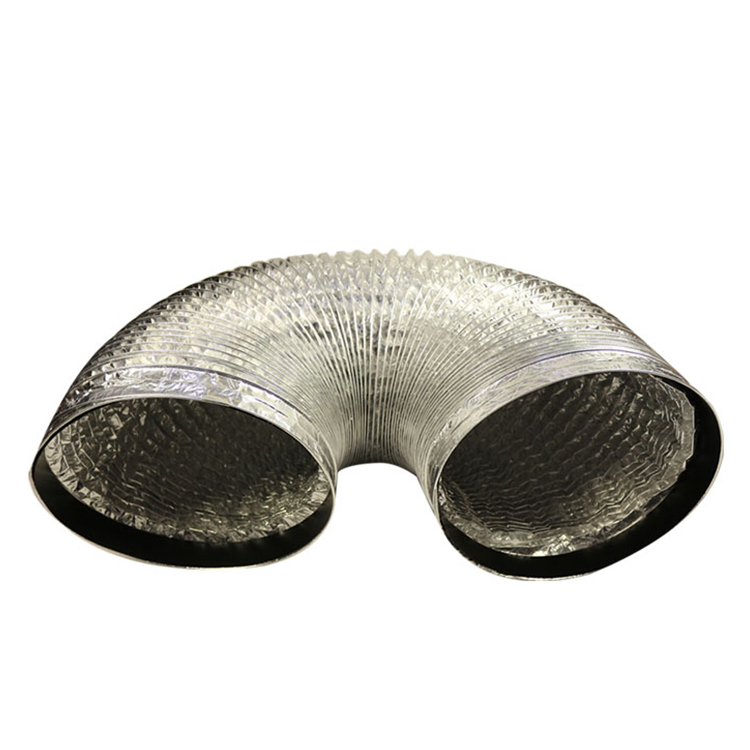

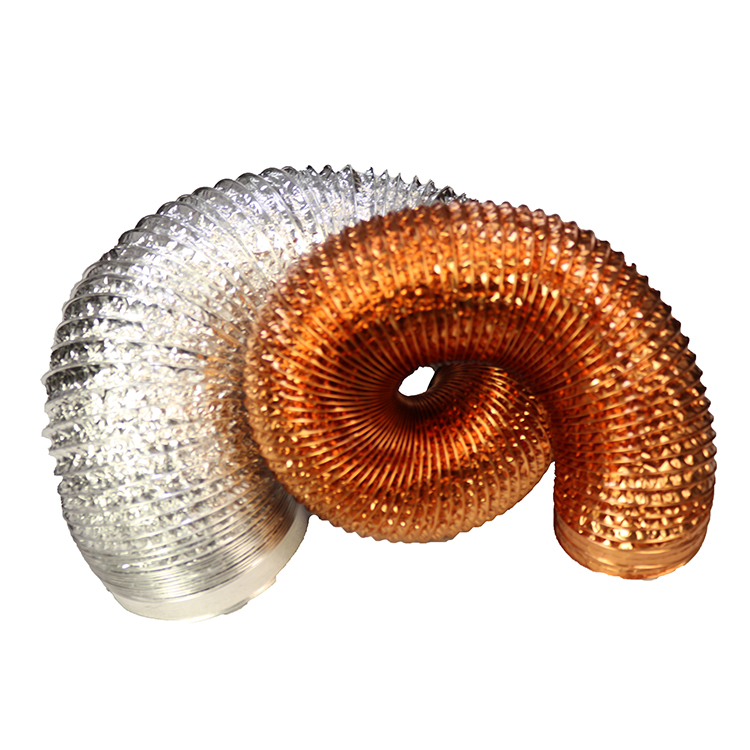

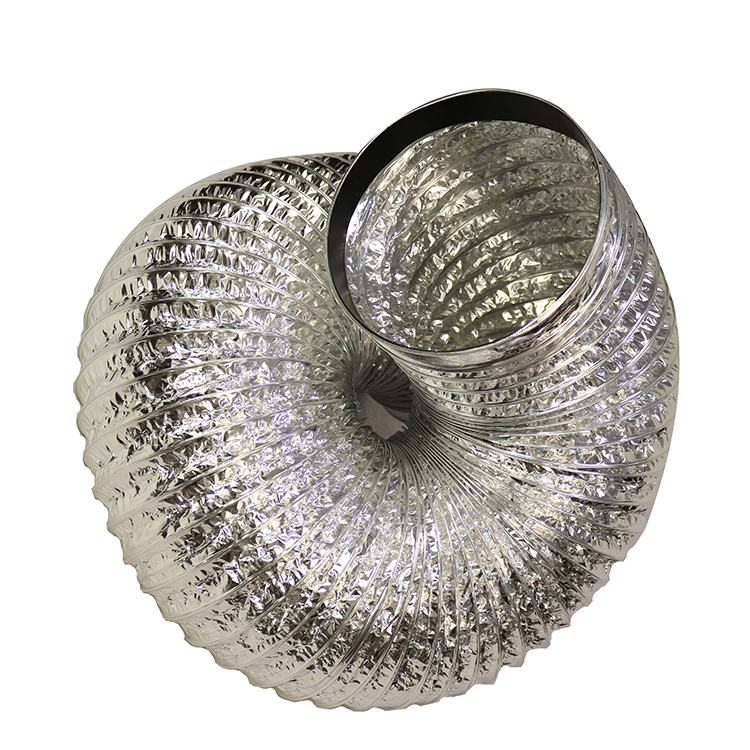

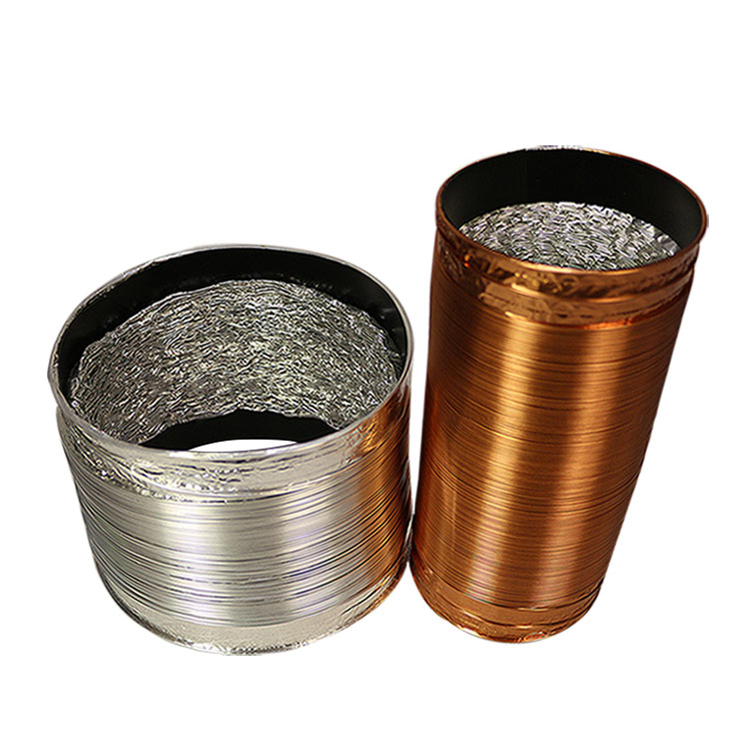

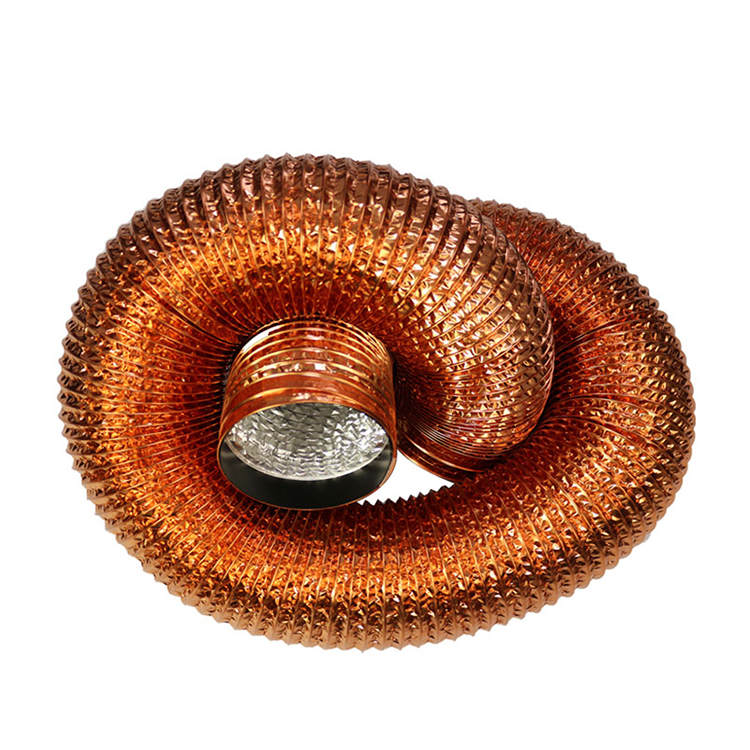

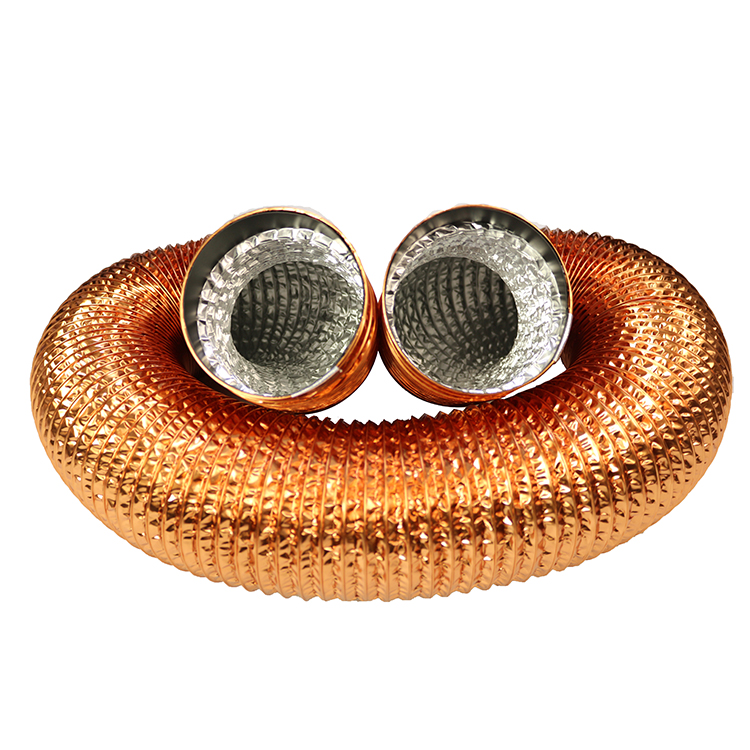

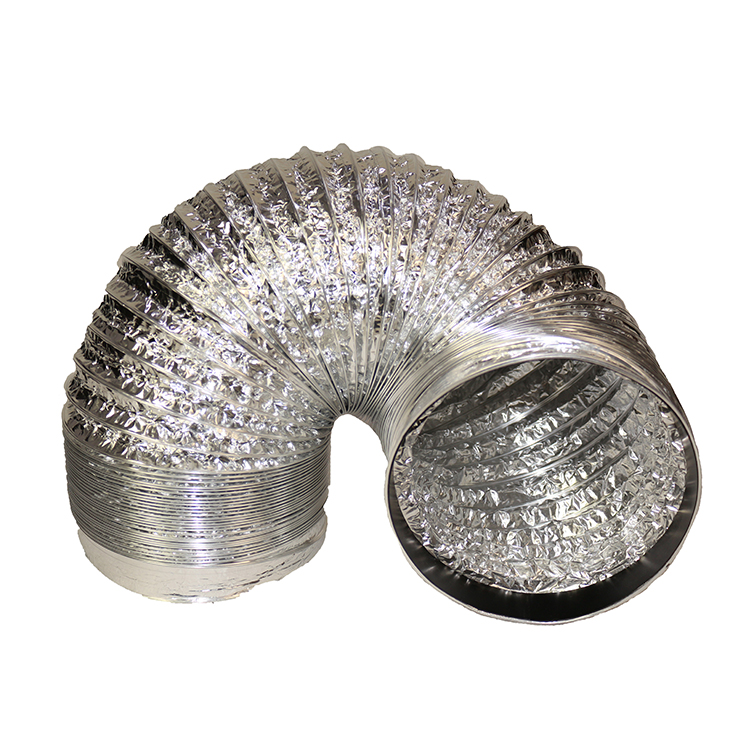

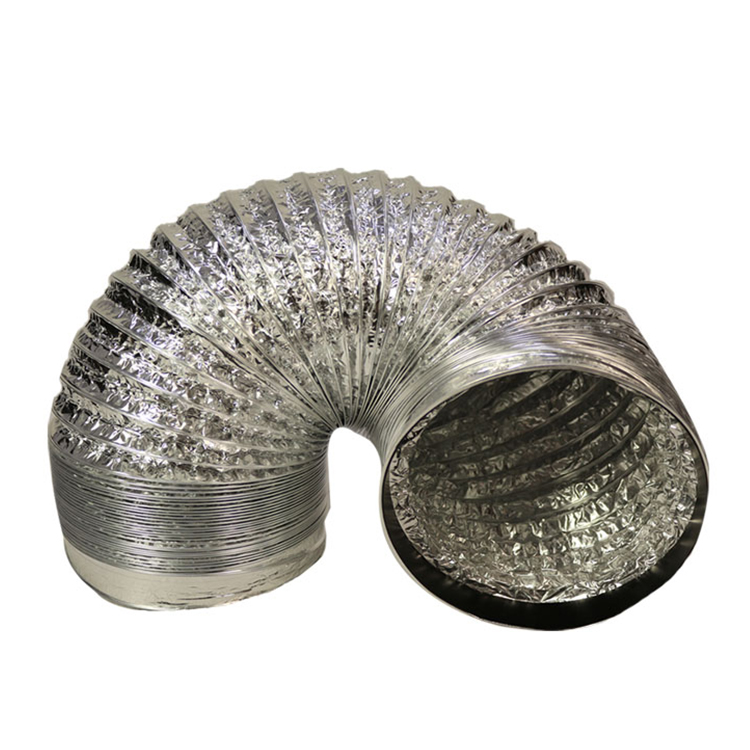

Kitchen Ventilation Flexible Duct

烟管


Product Code

XY-103

产品编码

XY-103

Construction

2 Aluminum Foil

+ 1 PET+2PVC Paster

材料

2层铝箔+1层PET

+2个PVC贴片

Color

Silver/Copper

颜色

银色/铜色

AvailableDiameter

40mm-650mm

(1.5"-25")

直径范围

40mm-650mm

(1.5"-25")

Carbon Steel Wire Diameter

0.6mm-2.5mm

钢丝直径

0.6mm-2.5mm

StandardLength

5m(Max)

标准长度

5m(Max)

Thickness

0.032mm-0.035mm

厚度

0.032mm-0.035mm

Fire Resistance

Class A2(Max)

防火等级

A2级,难燃

CompressRatio

1: 25

压缩比

1:25

Temperature Range

-30℃/+150℃

温度范围

-30℃/+150℃

Operating Pressure

3000Pa

最大压力

3000Pa

Maximum Air Velocity

30m/s

最大风速

30m/s


抽油烟管主要由双面复合铝箔(两层铝箔中间加PET复合而成)缠绕在优质高弹性螺旋形钢丝制做而成。具有柔软性好,抽风声音比普通塑料烟管要少的多,阻燃性好,不沾油,使用寿命长,外型高档与不锈钢抽油烟机搭配更合理完美。

Kitchen Ventilation Flexible Duct is made of spiral steel wire laminated with 2 Layers aluminum flexible duct. It has good flexibility,good fire retardant, non-stick oil, convulsions sound is less than ordinary plastic pipe,and long service life. It will be more reasonable and perfect if its high-grade appearance match with Range hoods.
