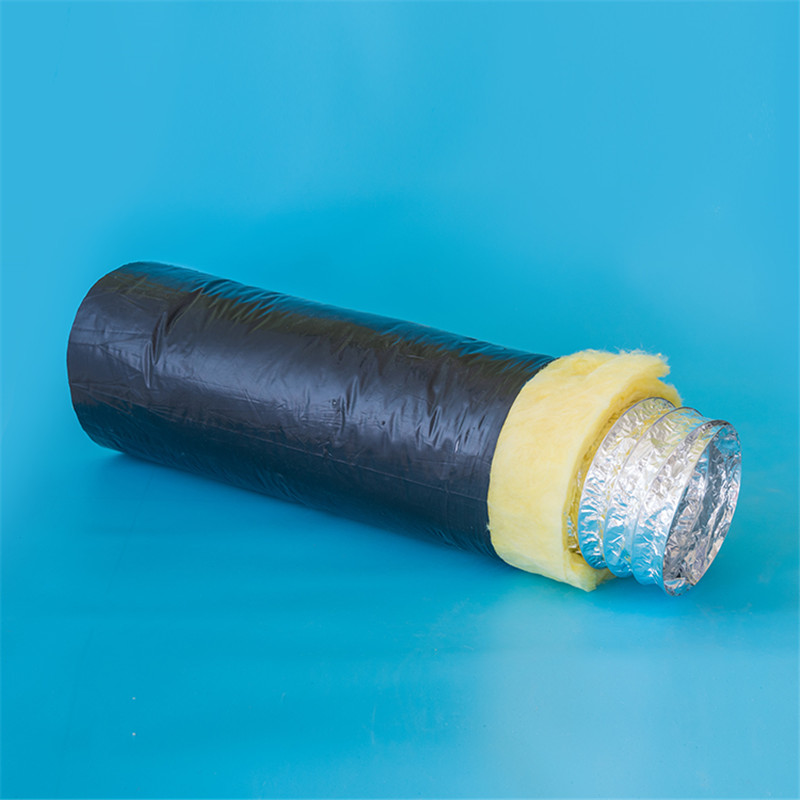

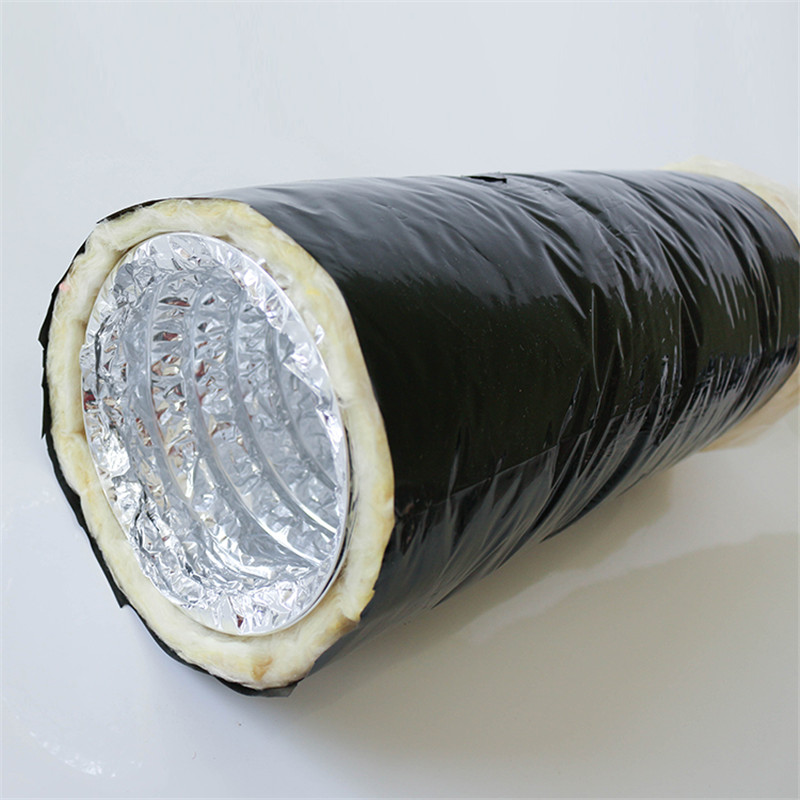

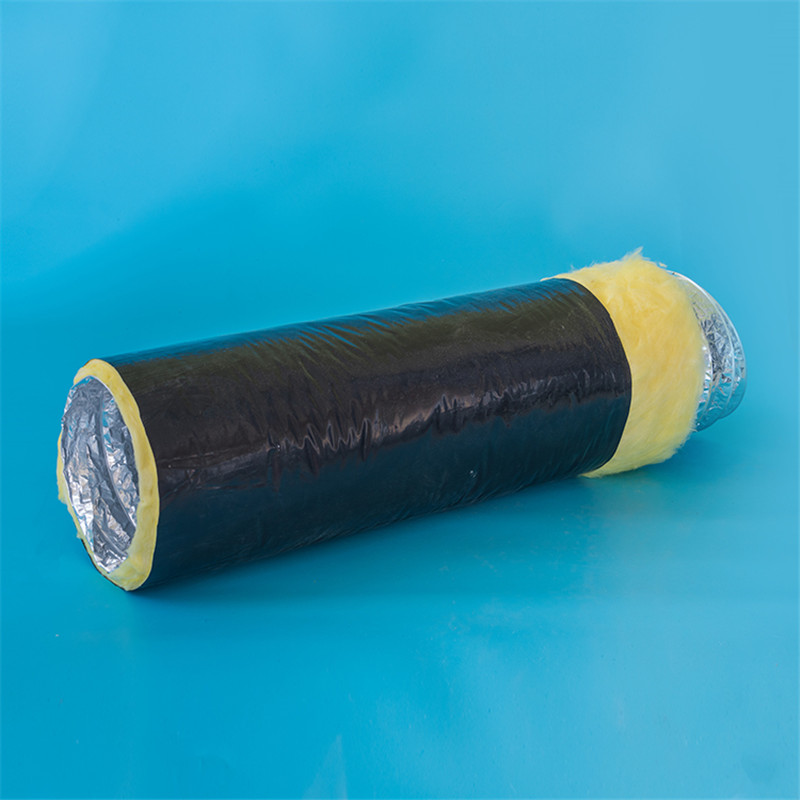

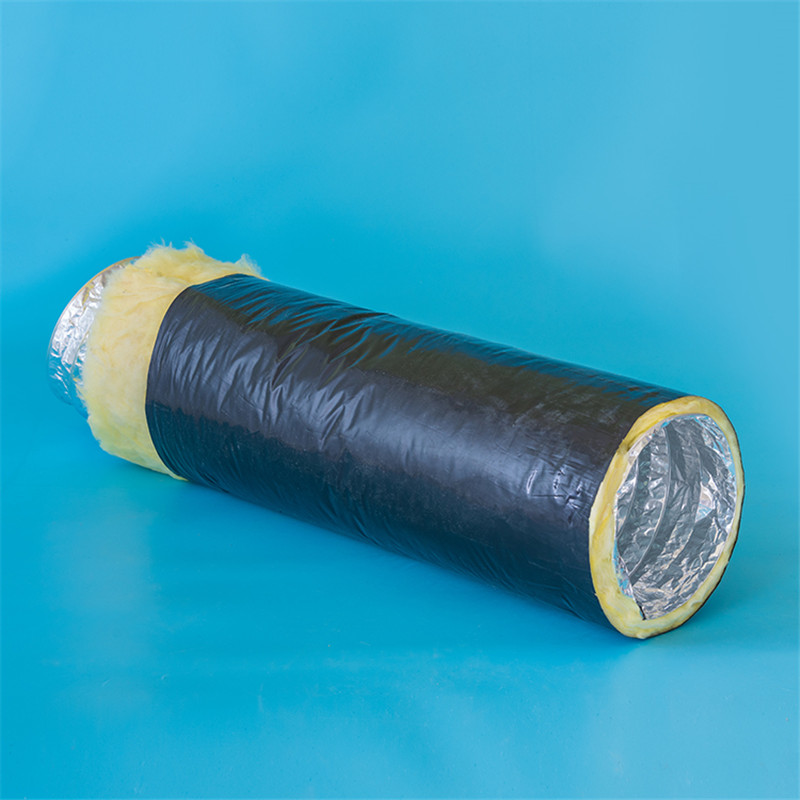

Fiberglass Insulation Flexible Duct
玻璃棉保温软管（铝箔内管+黑色外套）
|
Product Code |
XY-602 |
||
|
Construction (From outside to inside) |
Sleeve |
Black PE/PVC Film |
|
|
Fiberglass |
Density |
16kg/m3-32kg/m3 |
|
|
Thickness |
25mm / 30mm |
||
|
Inner Duct |
Material |
Aluminum Duct |
|
|
Diameter |
50mm-650mm (2"-25") |
||
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
||
|
Length |
10m(Max) |
||
|
Thermal Insulation |
|
||
|
Fire Resistance |
ClassA2(Max) |
||
|
CompressRatio |
1: 10 |
||
|
Temperature Range |
-30℃/+150℃ |
||
|
Operating Pressure |
3000Pa |
||
|
Maximum Air Velocity |
30m/s |
||
|
产品编码 |
XY-602 |
||
|
构成（由外到内） |
外套 |
黑色PE/PVC |
|
|
玻璃棉 |
密度 |
16kg/m3-32kg/m3 |
|
|
厚度 |
25mm / 30mm |
||
|
内管 |
材质 |
铝箔管 |
|
|
口径 |
50mm-650mm (2"-25") |
||
|
钢丝直径范围 |
0.9mm-1.3mm |
||
|
长度 |
10m(Max) |
||
|
保温系数 |
|
||
|
防火等级 |
A2级，难燃 |
||
|
压缩比 |
10 : 1 |
||
|
耐温范围 |
-30℃/+150℃ |
||
|
最大压力 |
3000Pa |
||
|
最大风速 |
30m/s |
||
