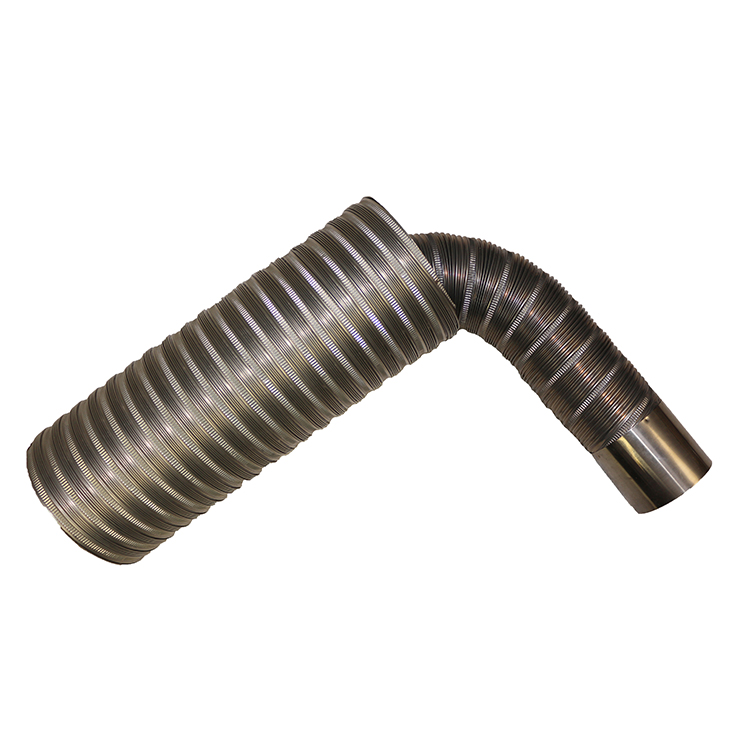

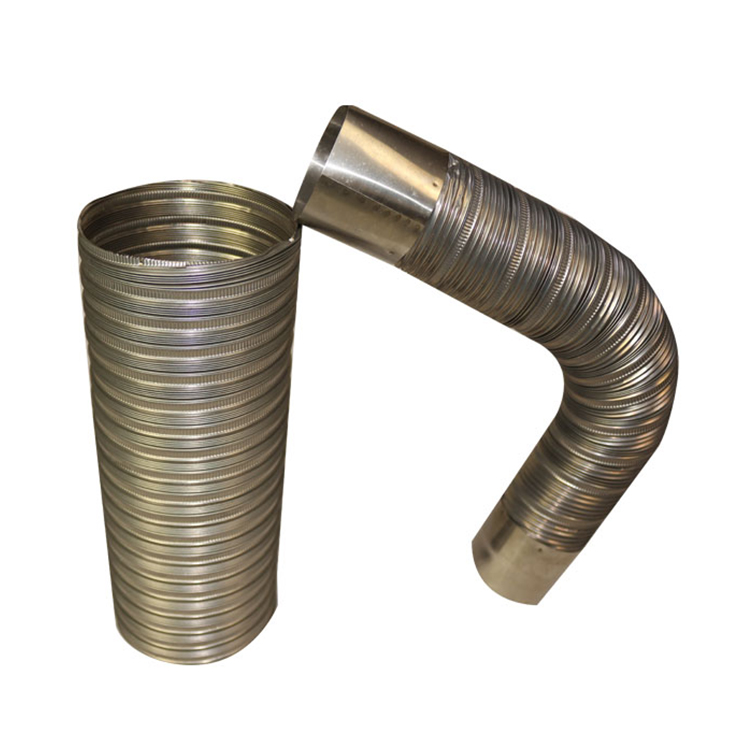

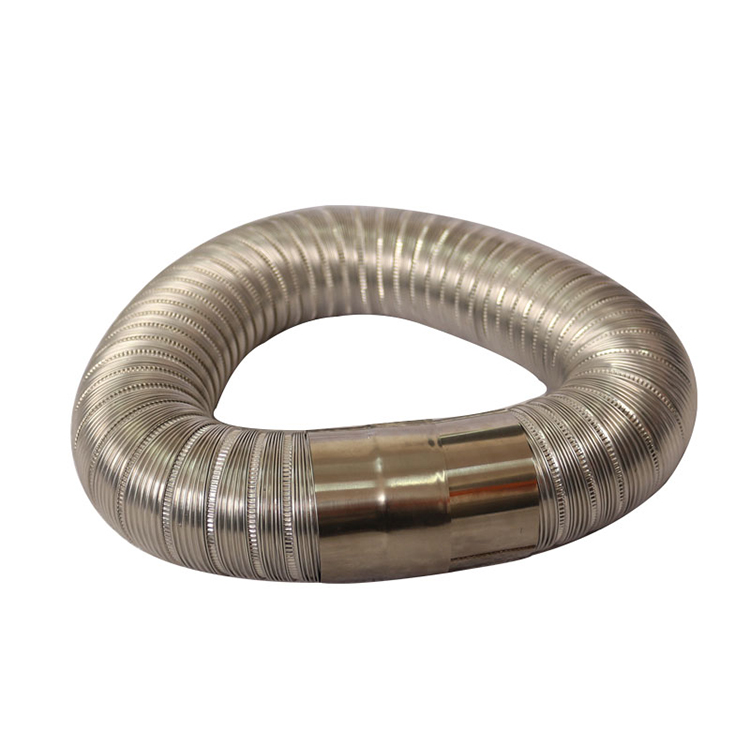

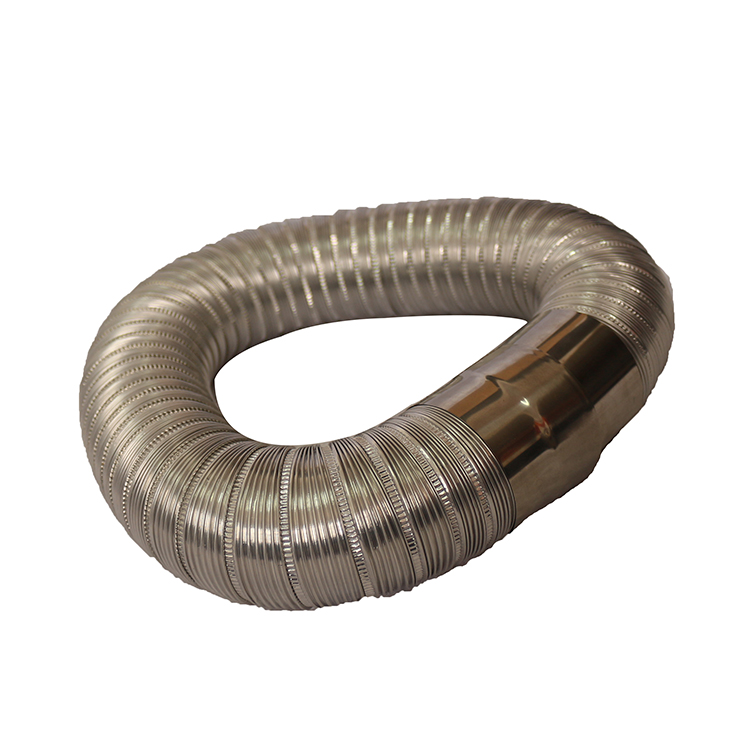

Semi-rigid Stainless Steel Flexible Duct
不锈钢波纹管
|
Product Code |
XY-302 |
产品编码 |
XY-302 |
|
Construction |
Stainless steel 304/316/316L |
材料 |
不锈钢304/316/316L |
|
AvailableDiameter |
45mm-300mm (1.8"-12") |
直径范围 |
45mm-300mm (1.8"-12") |
|
StandardLength |
4m(Max) |
标准长度 |
4m(Max) |
|
Thickness |
0.1mm |
厚度 |
0.1mm |
|
Fire Resistance |
Class A2(Max) |
防火等级 |
A2级，难燃 |
|
Goffer Numbers |
4/7 |
螺纹数 |
4/7 |
|
CompressRatio |
Can not be compressed |
压缩比 |
不可压缩 |
|
Temperature Range |
-30℃/+400℃ |
温度范围 |
-30℃/+400℃ |
|
Operating Pressure |
3000Pa |
最大压力 |
3000Pa |
|
Maximum Air Velocity |
最大风速 |
30m/s |
不锈钢波纹管是由厚度为0.1mm的不锈钢304材质直接压制而成，可塑性强，适用于热水器、油烟机等排污排风用。
Semi-rigid stainless steel flexible duct is made by stainless steel 304 material, thickness is 0.1mm, it is easy to install. Suitable for range hoods,laundries, dryer vent, toilets, bathrooms.
