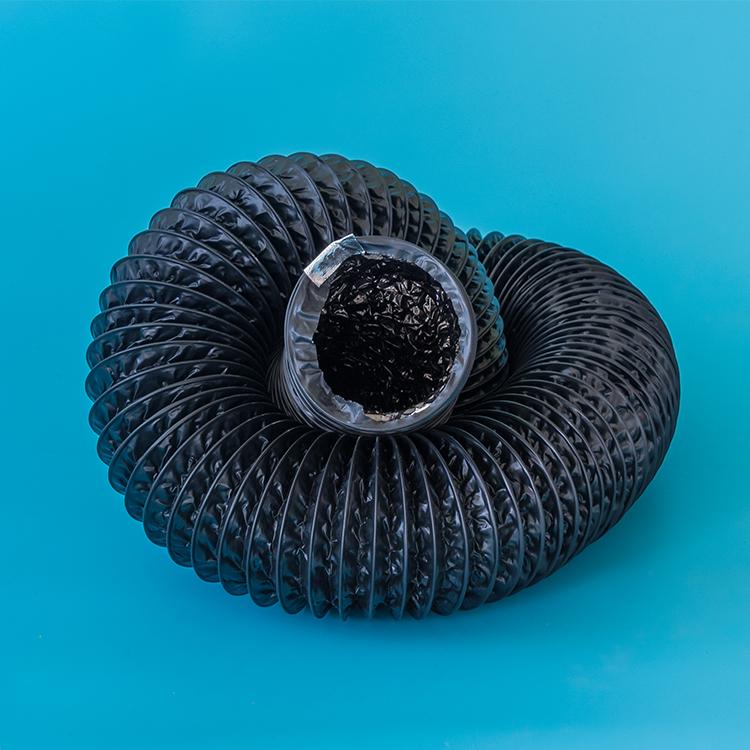

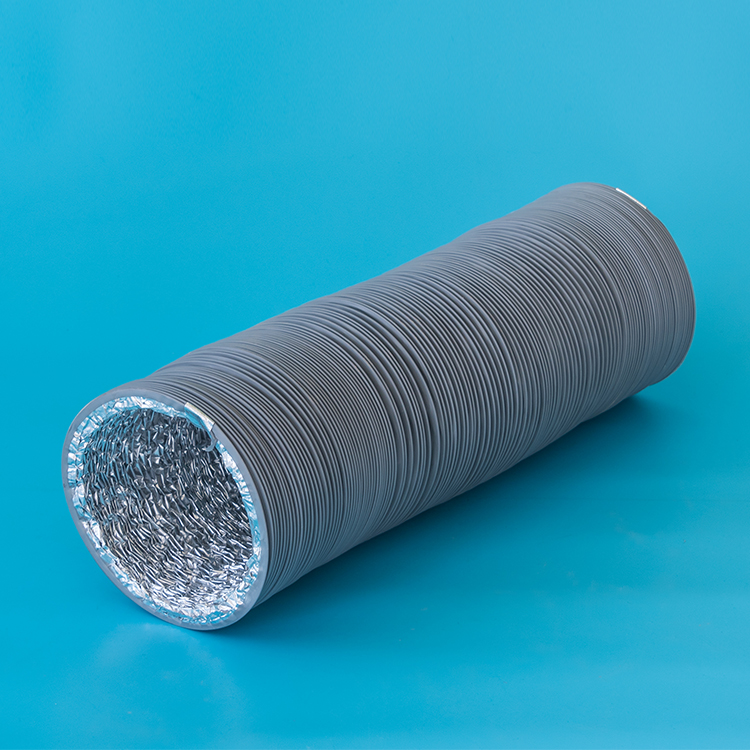

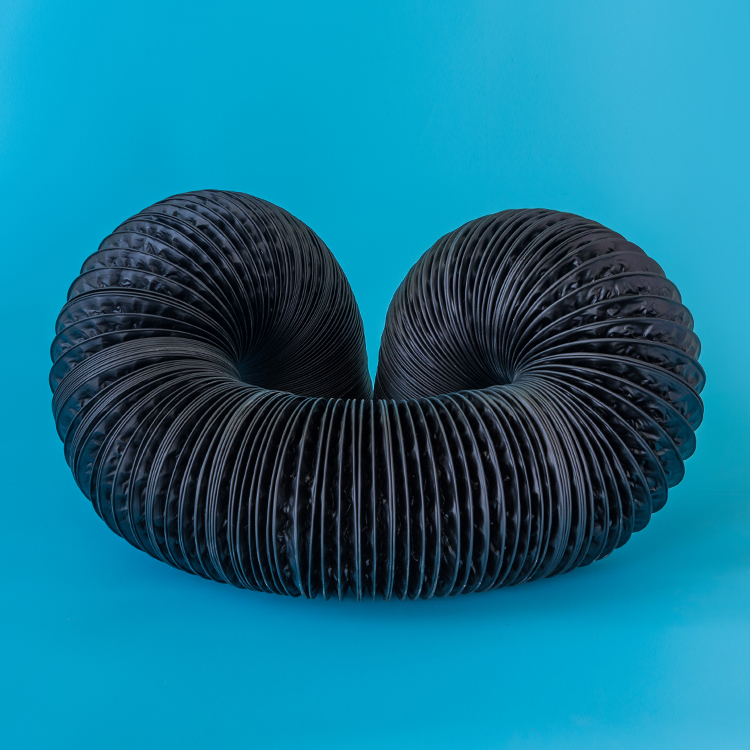

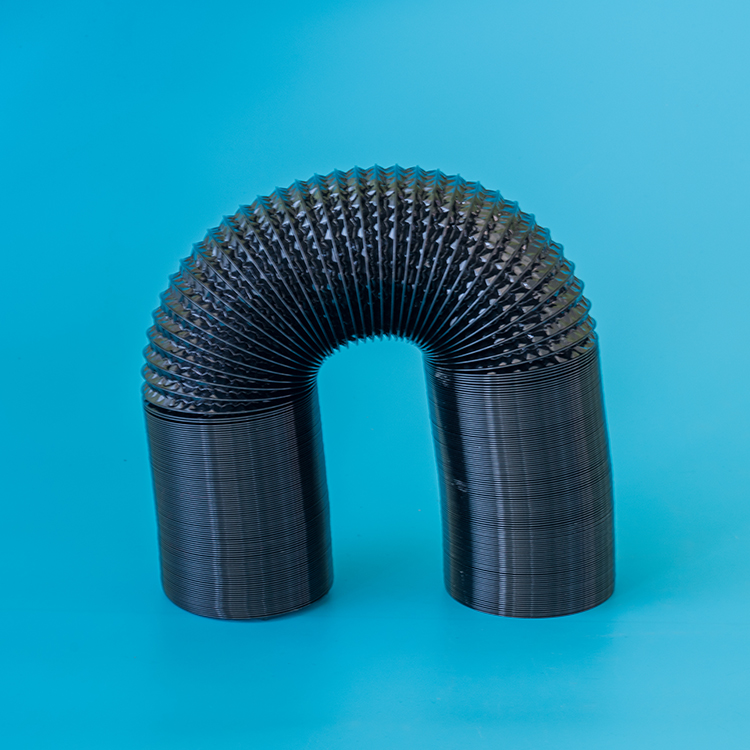

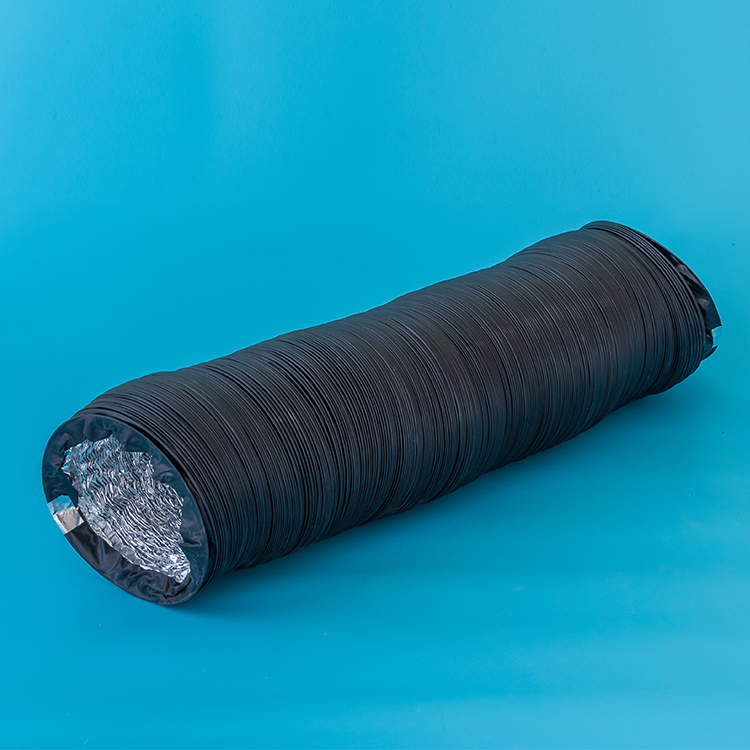

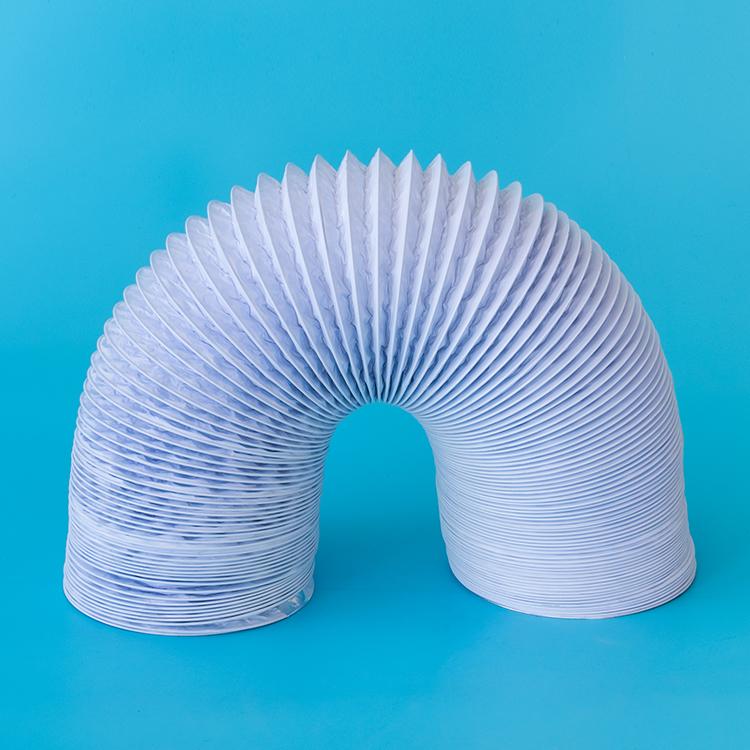

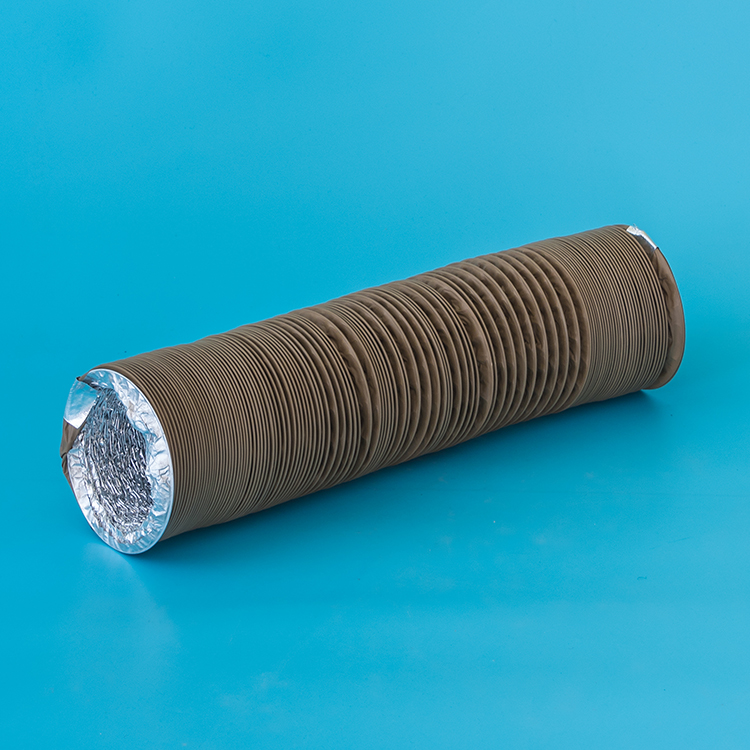

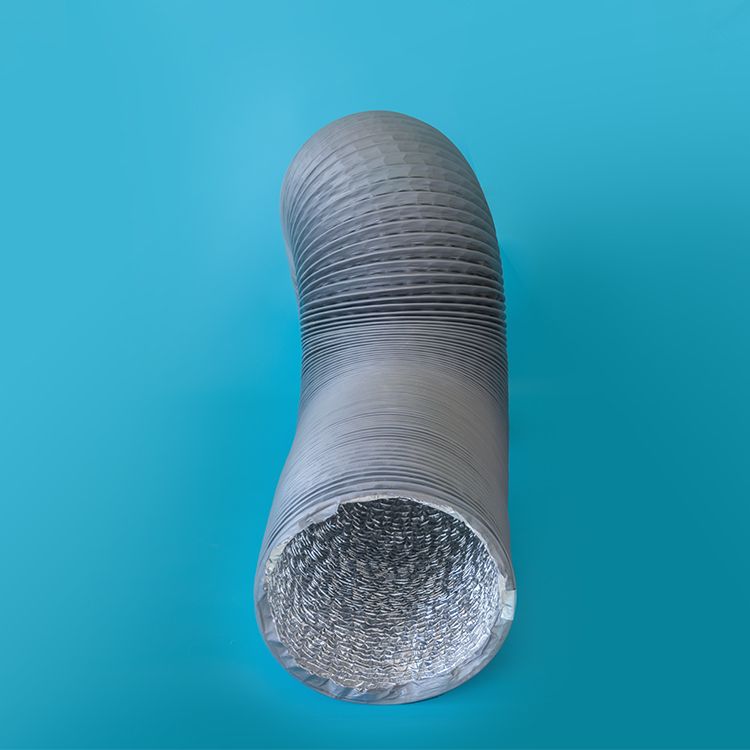

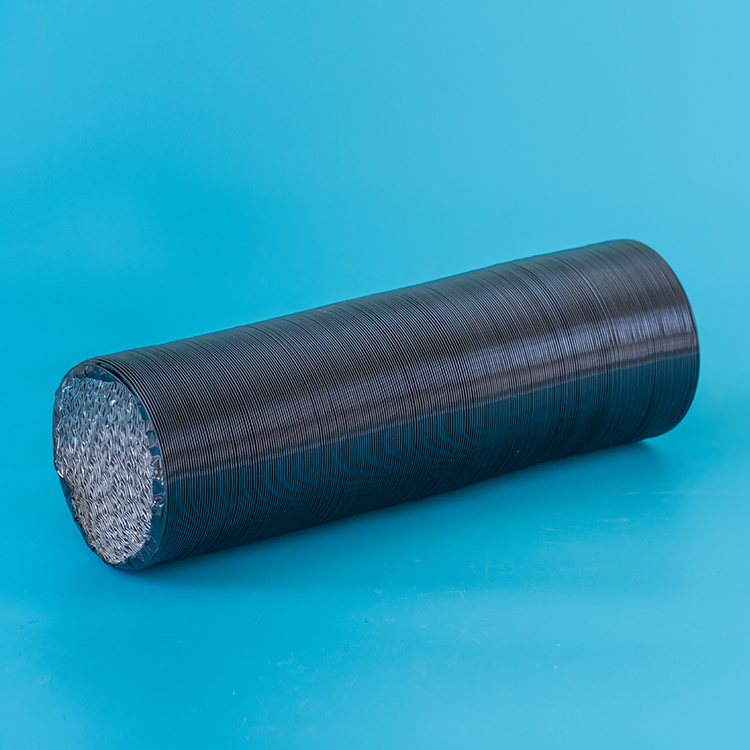

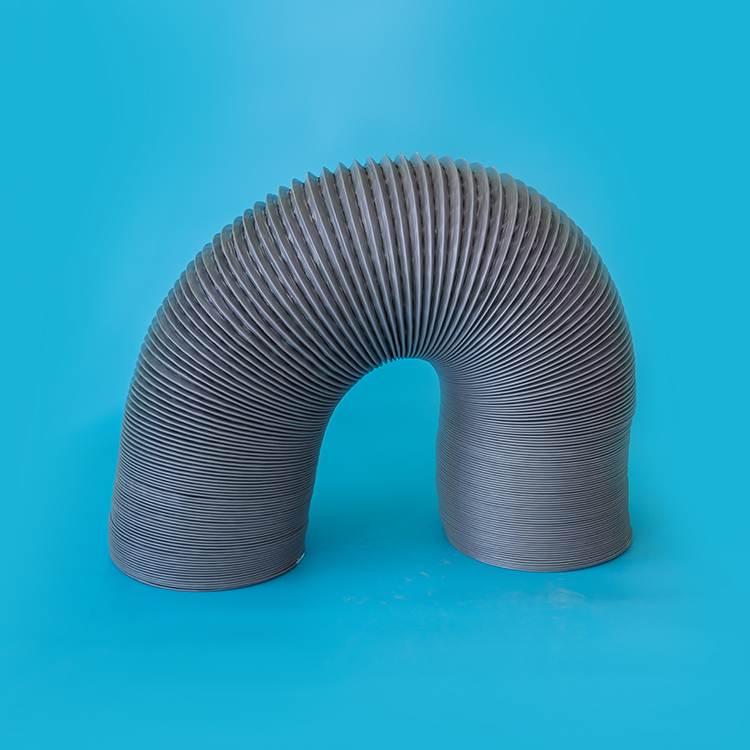

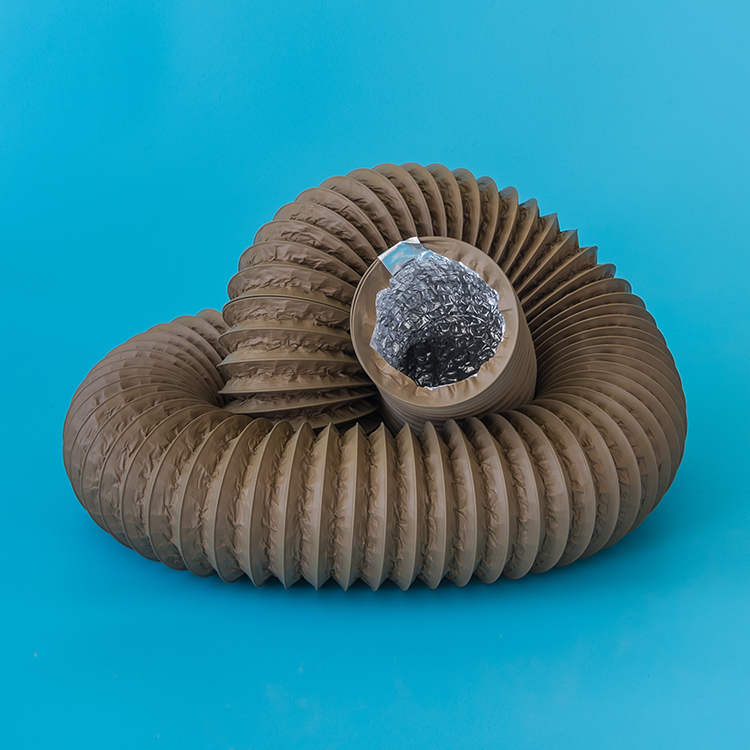

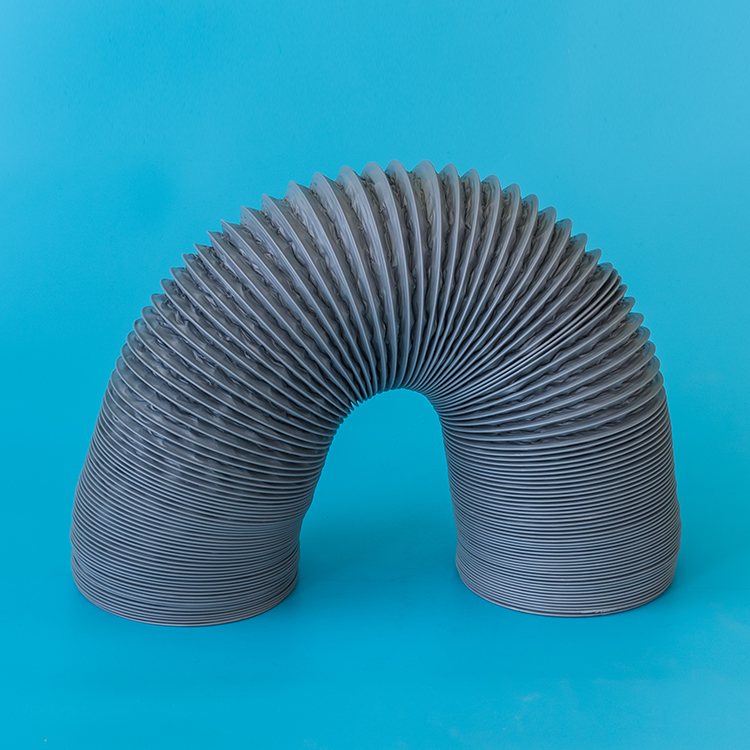

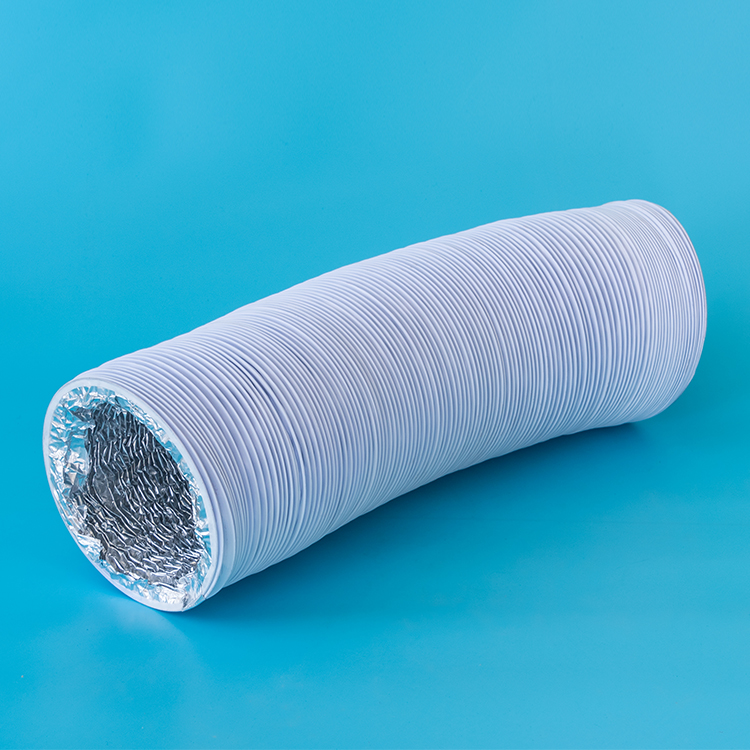

Double Layers Combi PVC Aluminum Flexible Duct
双面PVC铝箔复合软管
|
Product Code |
XY-202 |
产品编码 |
XY-202 |
|
Construction |
2 Aluminum Foil + 1 PET+1PVC film |
材料 |
2层铝箔+1层PET+1层PVC |
|

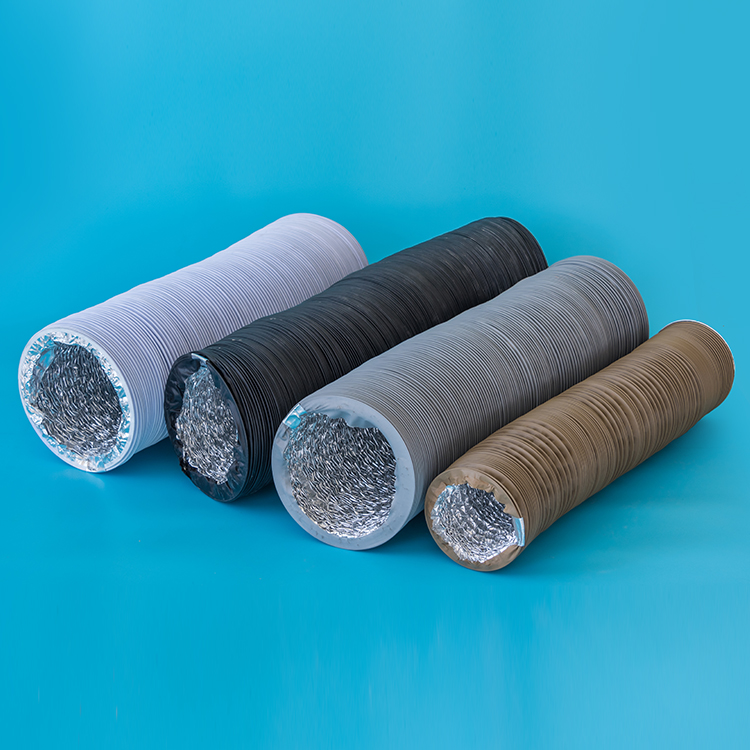

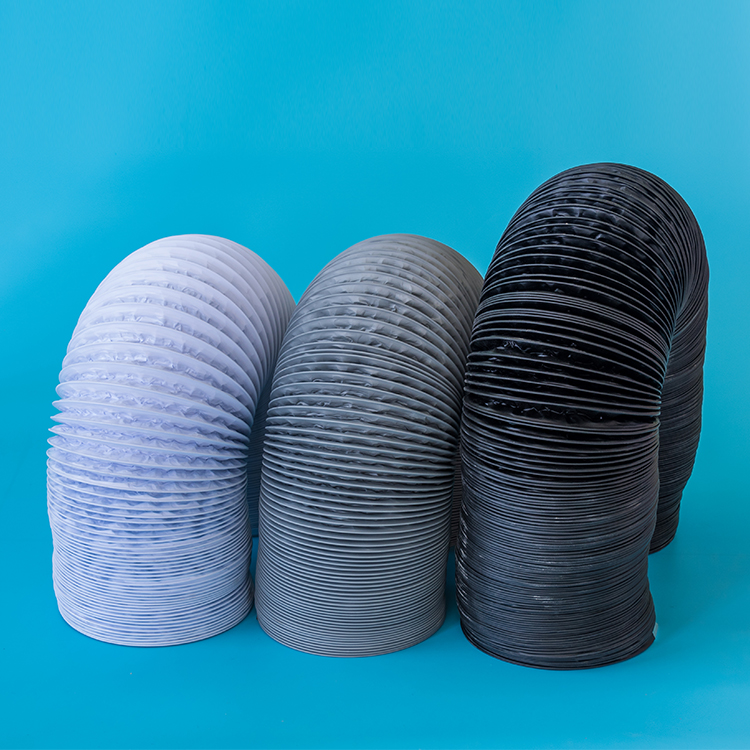

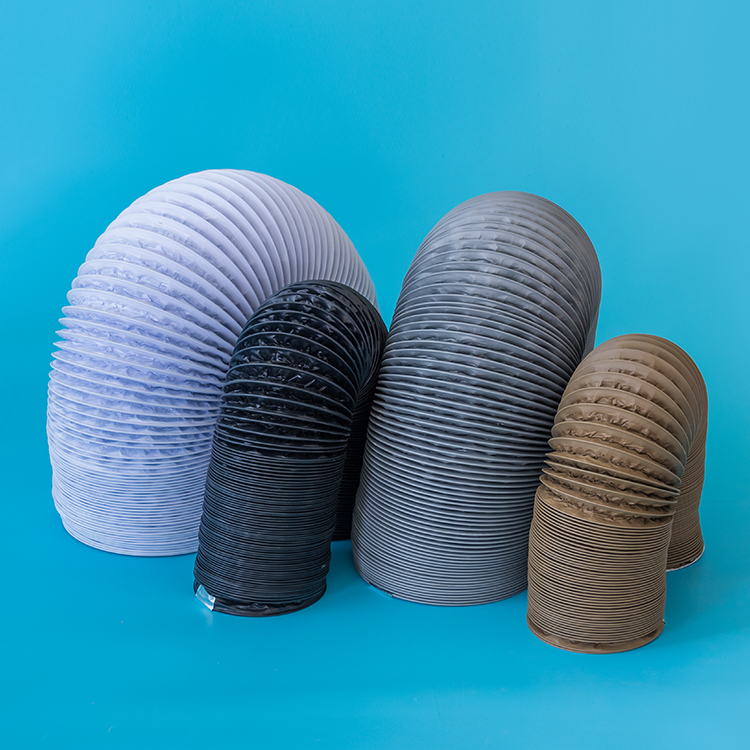

Color |
White/Black/Grey/Brown |
颜色 |
白/黑/灰/棕 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直径范围 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
钢丝直径 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
标准长度 |
10m(Max) |
|
Thickness |
0.132mm-0.135mm |
厚度 |
0.132mm-0.135mm |
|
Fire Resistance |
Limited Combustibility(Fire Will Out Within 3 Seconds) |
防火等级 |
阻燃（离开火焰3秒内熄灭） |
|
CompressRatio |
1: 25 |
压缩比 |
1：25 |
|
Temperature Range |
-30℃/+150℃ |
温度范围 |
-30℃/+150℃ |
|
Operating Pressure |
3000Pa |
最大压力 |
3000Pa |
|
Maximum Air Velocity |
最大风速 |
30m/s |
PVC铝箔复合软管是在铝箔伸缩软管外覆增强PVC阻燃膜制作而成，拉直后自持性好，阻力较小，清洁卫生，不污染所通气体，强度高，不易损坏。适用于高、中、低压的空调通风系统，各种排气系统及工矿企业除尘系统等。
Combi PVC Aluminum Flexible duct covered with 100 micron PVC foil.
High strength, not easy to be broken.
Ideal for using in general purpose exhaust applications.
