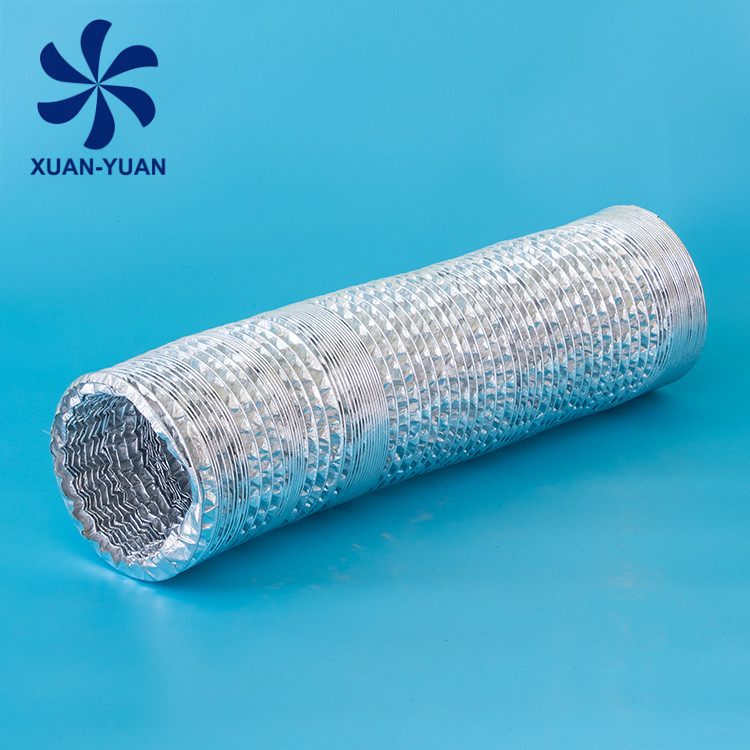

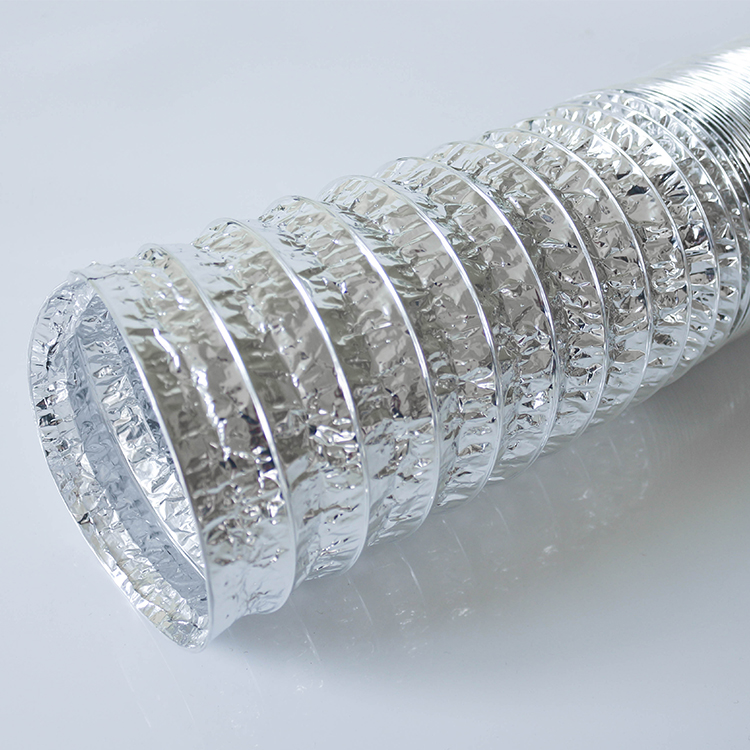

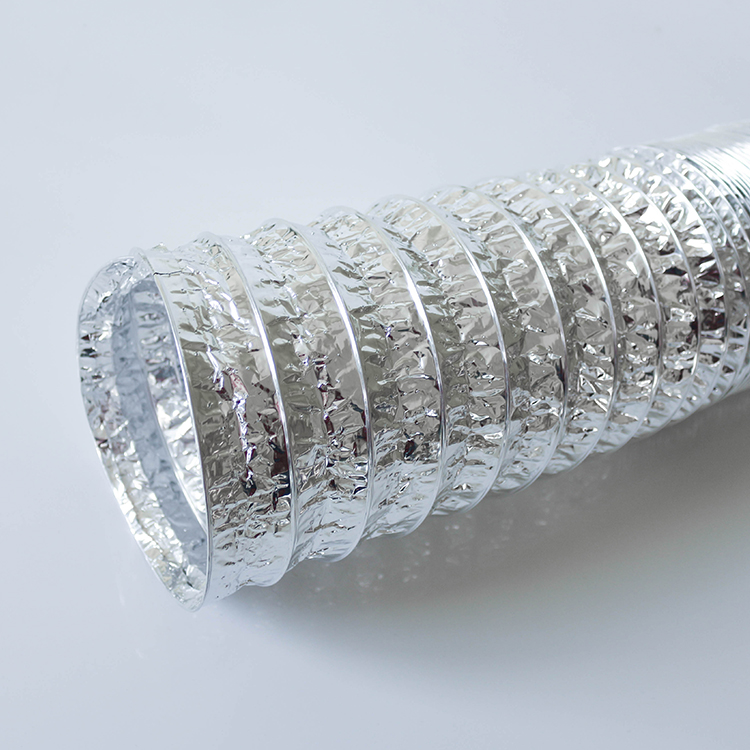

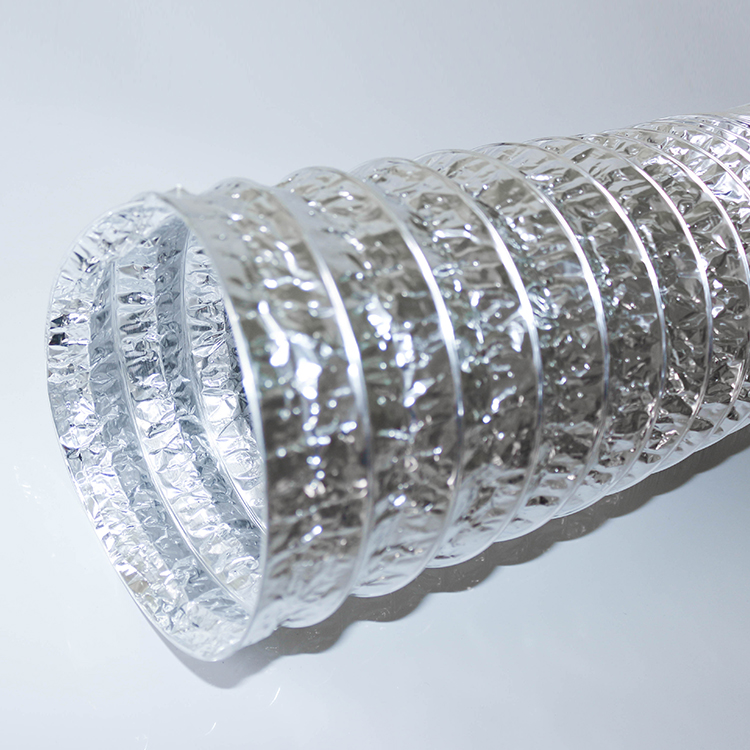

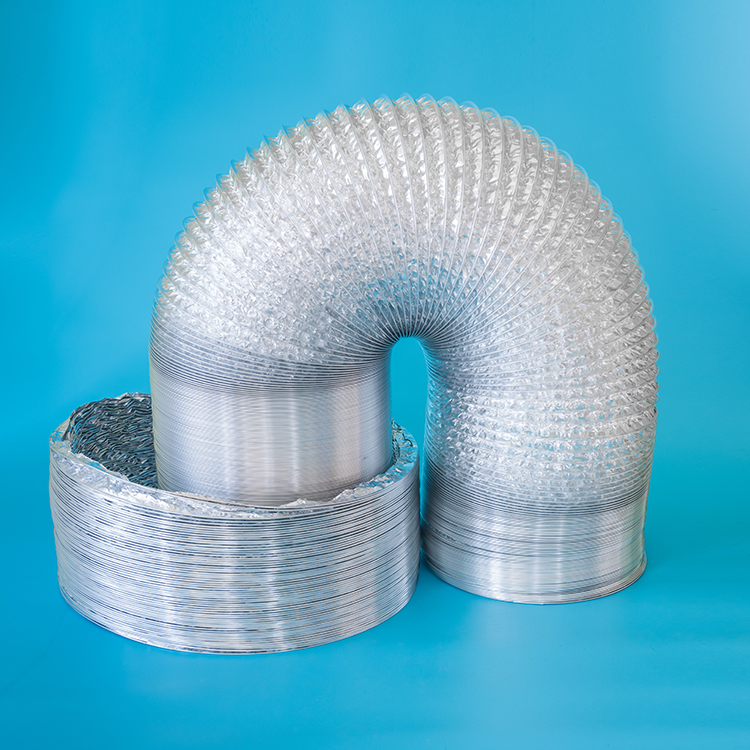

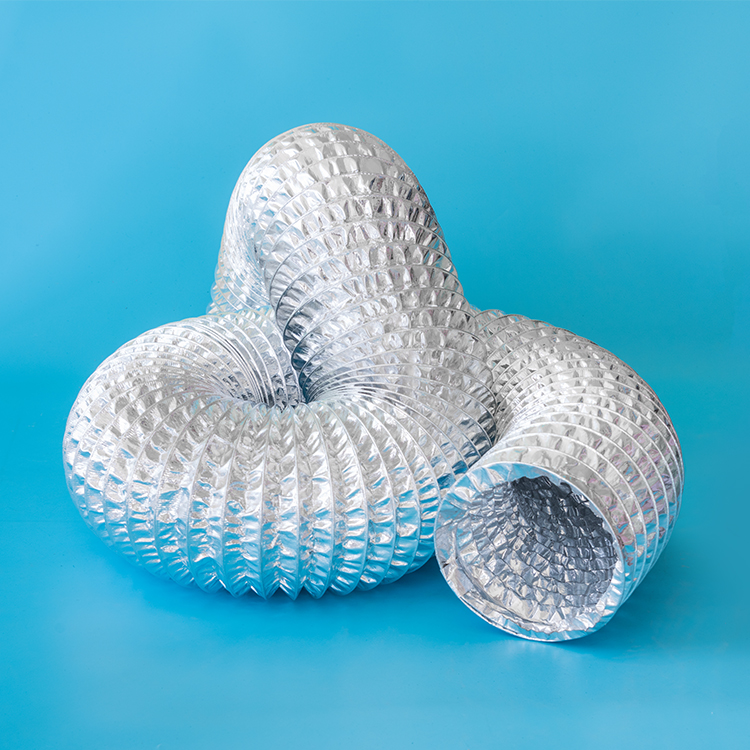

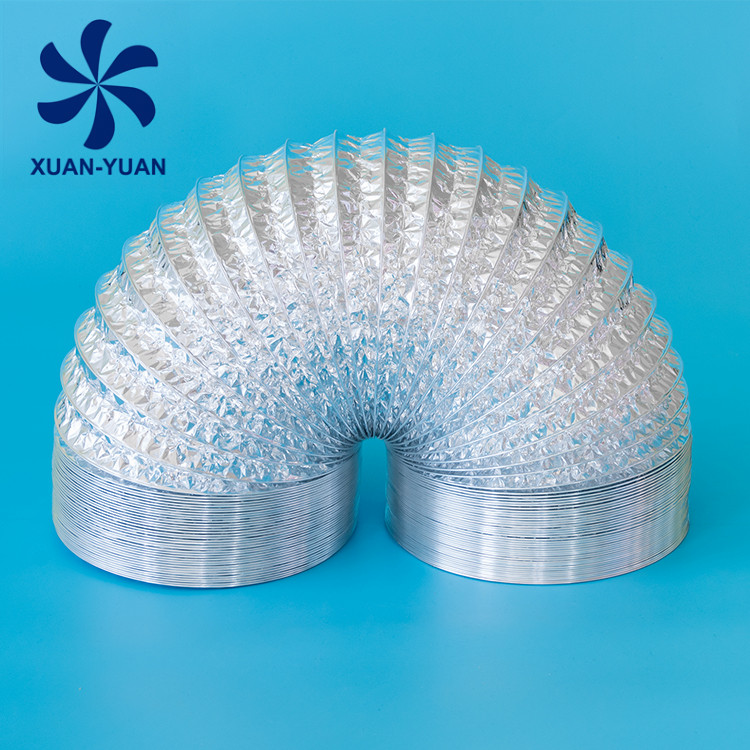

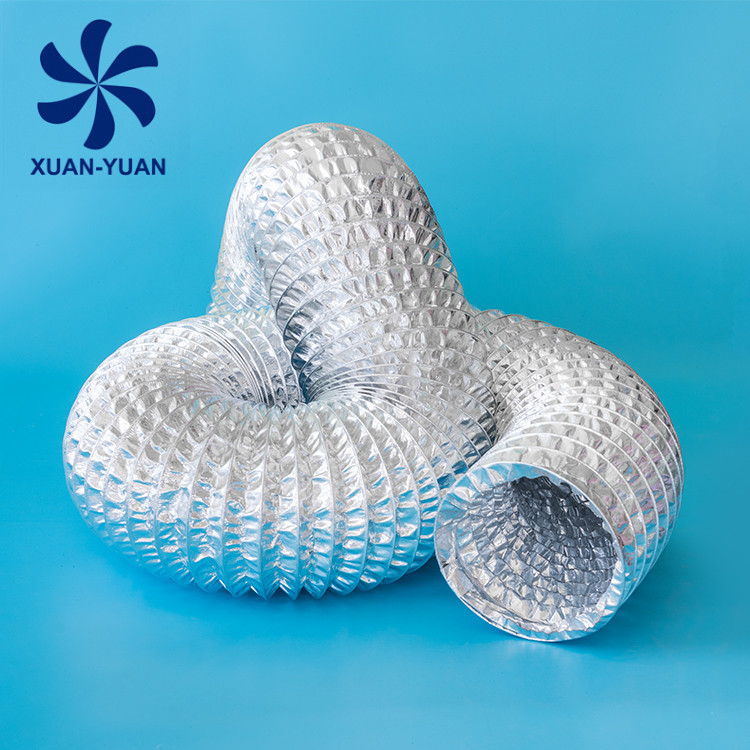

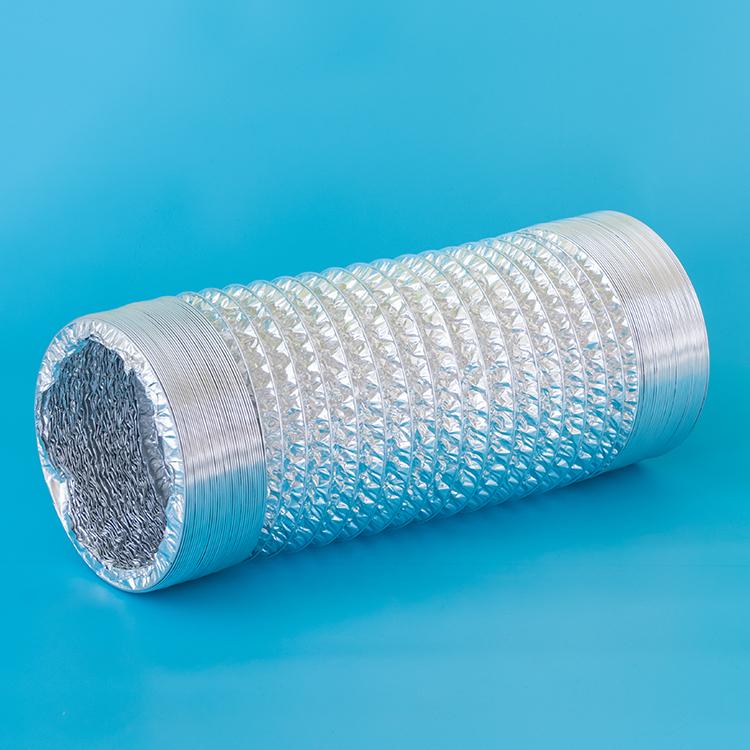

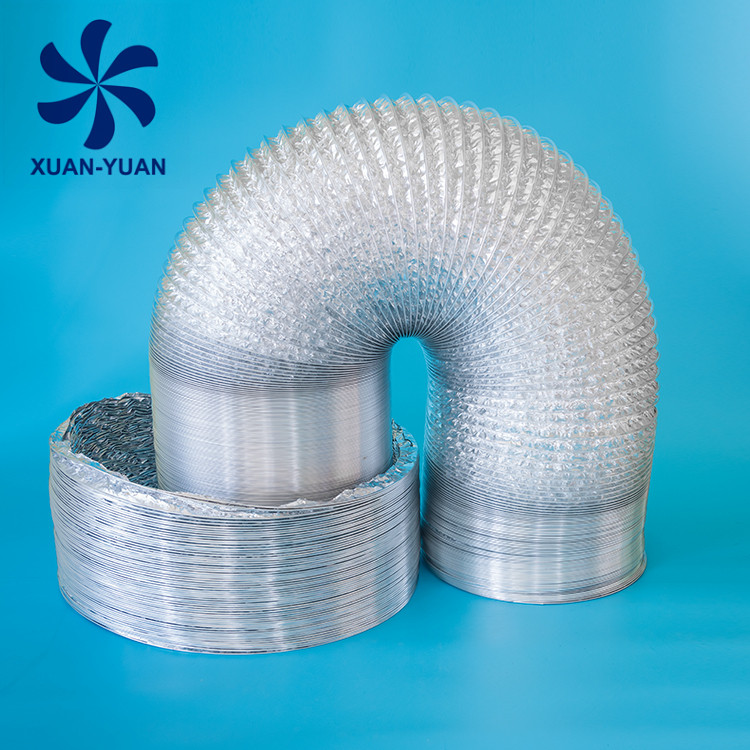

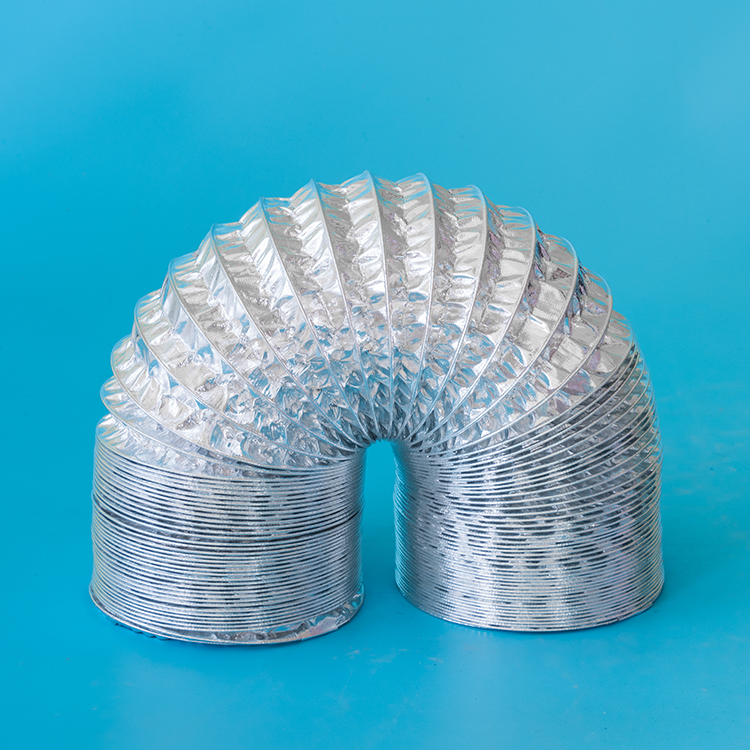

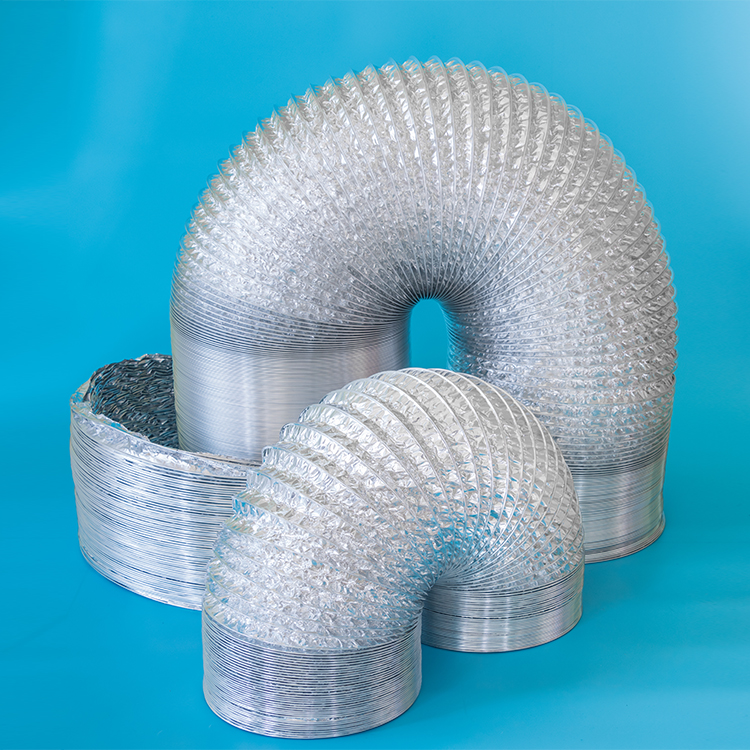

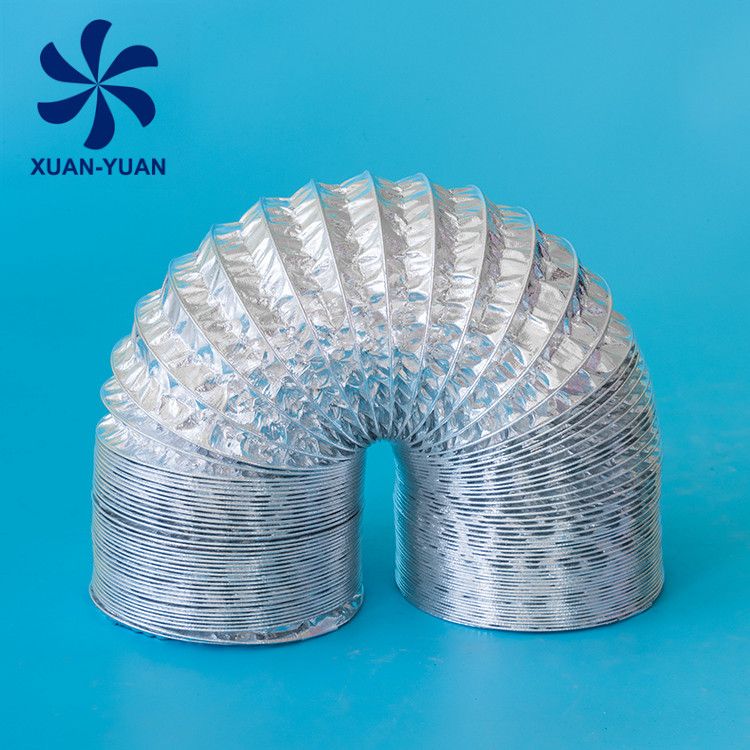

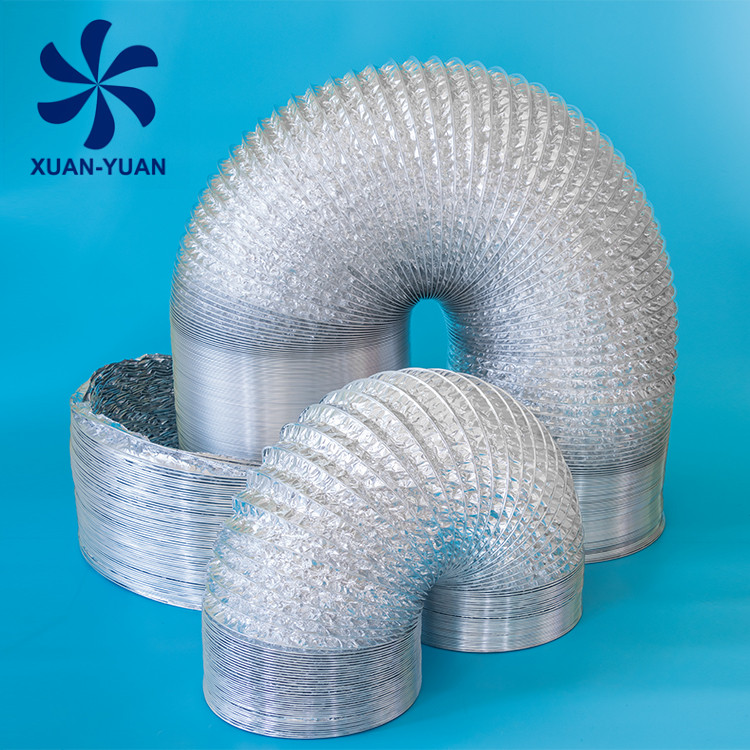

铝箔软管

Single Layer Aluminum Flexible Duct

单面铝箔软管


Product Code

XY-101

产品编码

XY-101

Construction

1 Aluminum Foil

+ 1 PET

材料

1层铝箔+1层PET

Color

Silver

颜色

银色

AvailableDiameter

40mm-650mm

(1.5"-25")

直径范围

40mm-650mm

(1.5"-25")

Carbon Steel Wire Diameter

0.6mm-2.5mm

钢丝直径

0.6mm-2.5mm

StandardLength

10m(Max)

标准长度

10m(Max)

Thickness

0.025mm-0.027mm

厚度

0.025mm-0.027mm

Fire Resistance

Class A2(Max)

防火等级

A2级,难燃

CompressRatio

1: 25

压缩比

1:25

Temperature Range

-30℃/+150℃

温度范围

-30℃/+150℃

Operating Pressure

3000Pa

最大压力

3000Pa

Maximum Air Velocity

30m/s

最大风速

30m/s


铝箔伸缩软管采用积层铝箔复合膜绕帖高弹性螺旋形强韧钢丝制作而成。

拉直后自持性好、风阻小、清洁卫生,遇到高温或火警时,不产生有毒气体,适用于高、中、低压的空调及通风系统,安装便捷。

Made of spiral steel wire laminated with aluminum/polyester foil.

Self-holding during usage and low wind resistance.

No toxic gases release at high temperature or in the case of fire alarm.

Ideal for using in general purpose exhaust applications.
